FI-JH40S-HF10

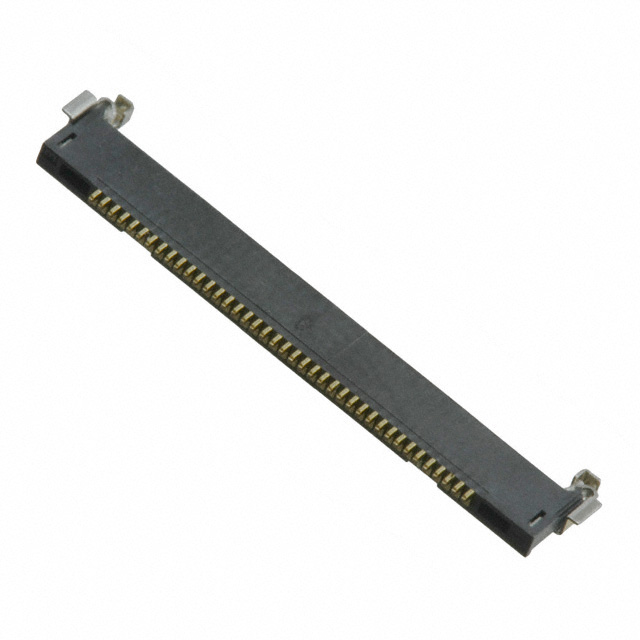

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FI-JH40S-HF10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FI-JH40S-HF10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FI-JH40S-HF10 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN WIRE TO BOARD 0.4MM 40POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FI-JH40S-HF10 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN WIRE TO BOARD 0.4MM 40POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5649 pcs | Data sheet | FI-JHx0S-HF10 DrawingBoard-to-Cable Selection GuideFI-JH Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | FI-JH | Row Spacing - Mating | - |
| Pitch - Mating | 0.016" (0.40mm) | Packaging | Bulk |
| Other Names | 670-1712 FI-JH40S-HF10-ND Q3707019 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Plastic | Insulation Height | 0.039" (1.00mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Friction Lock |
| Detailed Description | 40 Position Receptacle Connector 0.016" (0.40mm) Surface Mount, Right Angle Gold | Current Rating | - |
| Contact Type | Non-Gendered | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | 1.25µin (0.032µm) | Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
