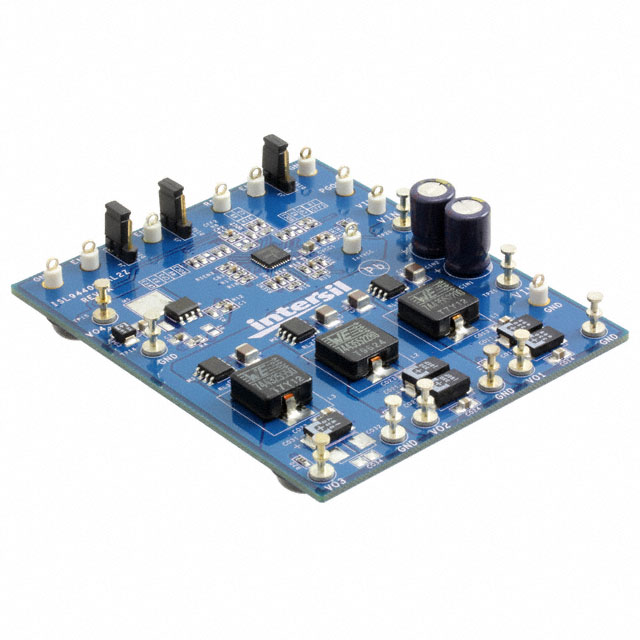

ISL9440EVAL2Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL9440EVAL2Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL9440EVAL2Z
Manufacturer	Intersil
Description	EVAL BOARD FOR ISL9440
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 1031 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$32.577

Product parameter
Data sheet

Product parameter

Part Number	ISL9440EVAL2Z	Manufacturer	Intersil
Description	EVAL BOARD FOR ISL9440	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	1031 pcs	Data sheet	ISL9440(A),9441 ISL9440EVAL2Z
Category	Development Boards, Kits, Programmers	Voltage - Output	1.5V, 2.5V, 3.3V, 5V
Voltage - Input	6 V ~ 16 V	Utilized IC / Part	ISL9440
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	4, Non-Isolated
Manufacturer Standard Lead Time	15 Weeks	Main Purpose	DC/DC, Step Down with LDO
Lead Free Status / RoHS Status	Not applicable / Not applicable	Frequency - Switching	300kHz
Detailed Description	ISL9440 - DC/DC, Step Down with LDO 4, Non-Isolated Outputs Evaluation Board	Current - Output	6A, 6A, 4A, 800mA
Board Type	Fully Populated
