IRSM808-204MHTR

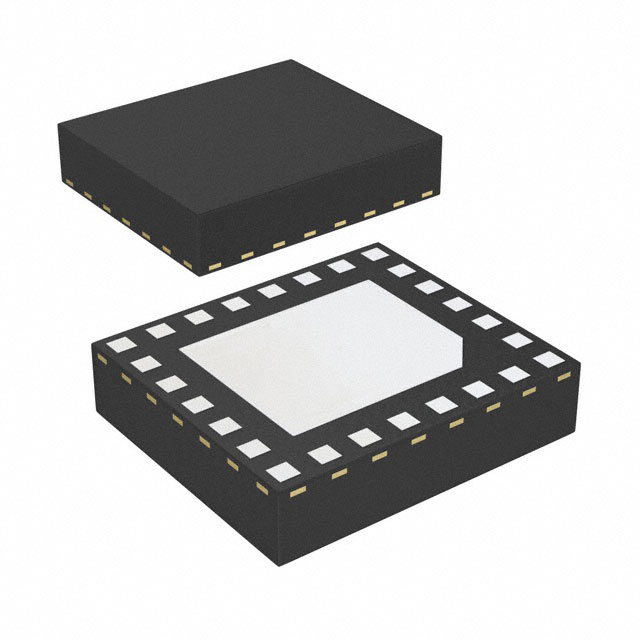

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRSM808-204MHTR with confidence from Components-World.HK, 1 Year Warranty
Dowload IRSM808-204MHTR Details in PDFSee Product Specifications for product details.
Buy IRSM808-204MHTR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRSM808-204MHTR |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC MOTOR DRIVER 250V 20A PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.824 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRSM808-204MHTR | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | IC MOTOR DRIVER 250V 20A PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38356 pcs | Data sheet | IRSM808-204MH |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 13.5 V ~ 16.5 V |
| Voltage - Load | 200V (Max) | Technology | UMOS |
| Supplier Device Package | 31-PQFN (8x9) | Series | µIPM™ |
| Rds On (Typ) | 130 mOhm | Packaging | Tape & Reel (TR) |
| Package / Case | 31-PowerVQFN | Output Configuration | Half Bridge |
| Other Names | SP001546528 | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 24 Weeks | Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | Logic |
| Features | Bootstrap Circuit | Fault Protection | UVLO |
| Detailed Description | Half Bridge Driver AC Motors UMOS 31-PQFN (8x9) | Current - Peak Output | - |
| Current - Output / Channel | 20A | Applications | AC Motors |
