Home > Products > Switches > Snap Action, Limit Switches > 1DM301

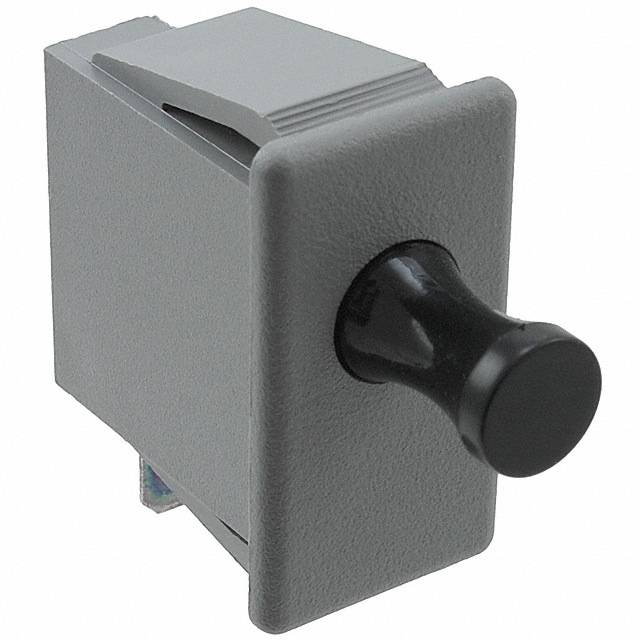

1DM301

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1DM301 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1DM301
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 20218 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.545	$2.594	$2.428	$2.294
	$2.149	$2.056	$1.976	$1.882

Product parameter
Data sheet

Product parameter

Part Number	1DM301	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20218 pcs	Data sheet	DM, DP Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-On
Series	DM	Release Force	-
Pretravel	-	Packaging	Bulk
Overtravel	0.625" (15.9mm)	Other Names	1DM301-ND 480-4048
Operating Temperature	-37°C ~ 82°C	Operating Position	-
Operating Force	425gf	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	-	Differential Travel	-
Current Rating	10A (AC)	Circuit	SPDT
Actuator Type	Push-Pull Plunger
