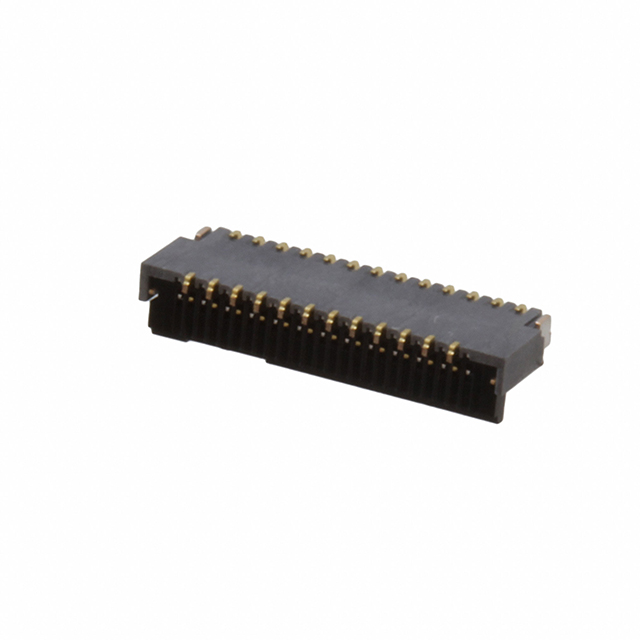

FH35C-25S-0.3SHW(99)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH35C-25S-0.3SHW(99) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH35C-25S-0.3SHW(99) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH35C-25S-0.3SHW(99) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FPC 25POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.596 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH35C-25S-0.3SHW(99) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC 25POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57704 pcs | Data sheet | FH35C-xxS-0.3SHW(99) DrawingFH35C-xxS-0.3SHW(99) SpecFH35C Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 30V |
| Termination | Solder | Series | FH35C |
| Pitch | 0.012" (0.30mm) | Packaging | Tape & Reel (TR) |
| Other Names | H122271TR | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 25 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Locking Feature | Flip Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Gray |
| Height Above Board | 0.035" (0.88mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 25 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 1.18µin (0.030µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Tapered | Actuator Material | Polyamide (PA), Nylon |
| Actuator Color | Black |
