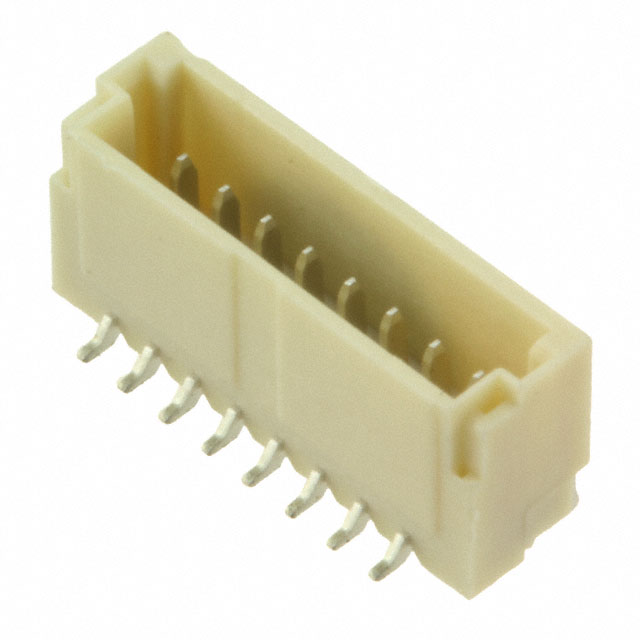

M40-3010846
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M40-3010846 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M40-3010846 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M40-3010846 |
|---|---|
| Manufacturer | Harwin |
| Description | 1.00MM PITCH SIL SMT VERTICAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.324 | $0.284 | $0.245 | $0.201 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.178 | $0.156 | $0.148 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M40-3010846 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 1.00MM PITCH SIL SMT VERTICAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 158307 pcs | Data sheet | M40-301 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | M40 |
| Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 952-3043 M40-3010846-ND |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T |
| Insulation Height | 0.169" (4.30mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Pick and Place, Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 8 position 0.039" (1.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
