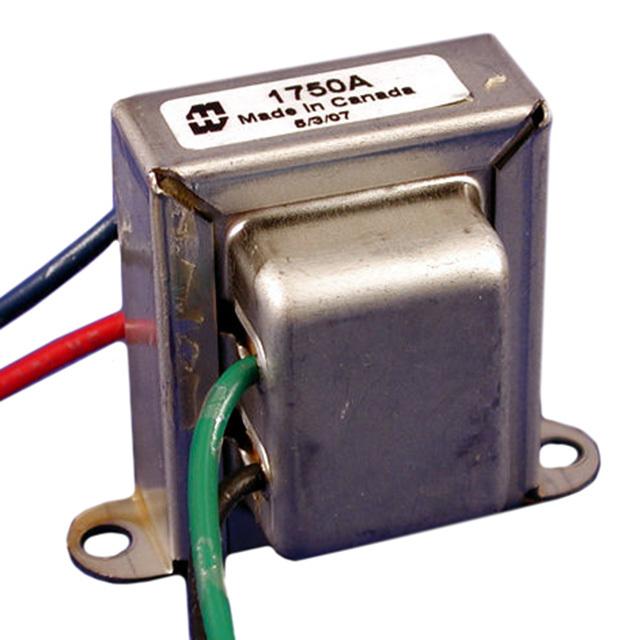

1750A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1750A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1750A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1750A |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | TRANSFORMER TUBE GUITAR AMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $7.234 | $6.384 | $6.171 | $5.532 | $5.32 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1750A | Manufacturer | Hammond Manufacturing |
|---|---|---|---|
| Description | TRANSFORMER TUBE GUITAR AMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7305 pcs | Data sheet | 1750,1760 Series Spec.1750A Drawing1750 Series Catalog Page |
| Category | Transformers | Weight | 0.625 lb (283.5g) |
| Voltage - Isolation | - | Turns Ratio - Primary:Secondary | 53.11:1 |
| Transformer Type | Single Ended Audiophile, Ultra-Linear - Tube Output | Termination Style | Wire Leads |
| Size / Dimension | 2.000" L x 1.440" W (50.80mm x 36.58mm) | Series | 1750 |
| Return Loss | - | Power Level | 3.5W |
| Packaging | Bulk | Other Names | 1750A-ND HM2109 |
| Operating Temperature | - | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Impedance - Secondary (Ohms) | 8 | Impedance - Primary (Ohms) | 22.8k |
| Height - Seated (Max) | 1.773" (45.03mm) | Frequency Response | ±1dB |
| Frequency Range | 70Hz ~ 15kHz | DC Resistance (DCR) - Secondary | 1.02 Ohm |
| DC Resistance (DCR) - Primary | 1.065 kOhm | Approvals | - |
