09692017111

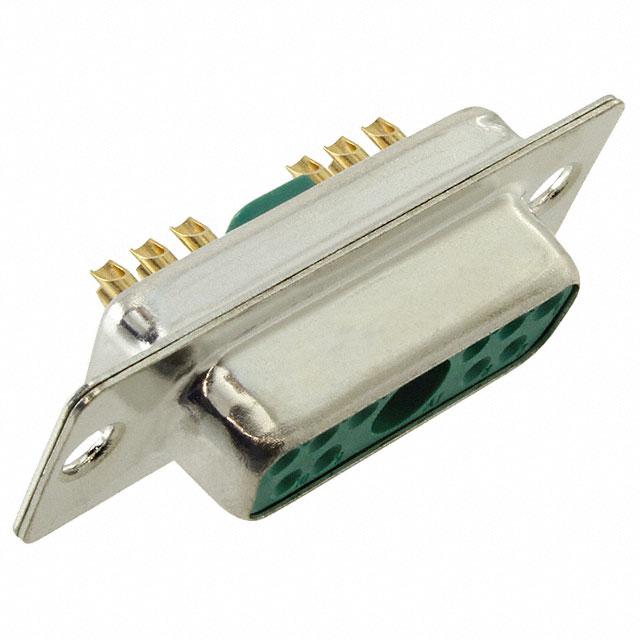

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09692017111 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09692017111 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09692017111 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN D-SUB RCPT 11P STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.021 | $2.888 | $2.625 | $2.494 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.429 | $2.166 | $2.035 | $1.798 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09692017111 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN D-SUB RCPT 11P STR SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21226 pcs | Data sheet | 0969201x111 DrawingDevice Connectivity Catalog |
| Category | Connectors, Interconnects | Wire Gauge | 20 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 2 (DA, A) - 11C1, 11W1 | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Bulk |
| Other Names | 09692017111-ND 1195-5154 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 11 (10 + 1 Coax or Power) |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyester Thermoplastic, Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 11 (10 + 1 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal and Coax or Power (Not Included) |
| Contact Material | - | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | - |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, Combo |
| Color | Green | Backset Spacing | - |
