FR12M05

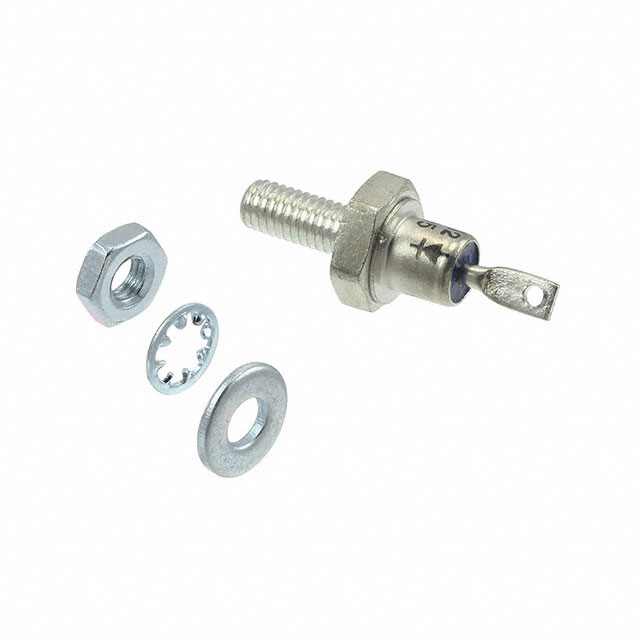

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FR12M05 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FR12M05 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FR12M05 |
|---|---|
| Manufacturer | GeneSiC Semiconductor |
| Description | DIODE GEN PURP 1KV 12A DO4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.775 | $2.499 | $2.054 | $1.721 | $1.499 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FR12M05 | Manufacturer | GeneSiC Semiconductor |
|---|---|---|---|
| Description | DIODE GEN PURP 1KV 12A DO4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26112 pcs | Data sheet | DO-4 (DO-203AA) Pkg DrawingFR12K05~MR05 |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 800mV @ 12A |
| Voltage - DC Reverse (Vr) (Max) | 1000V | Supplier Device Package | DO-4 |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Reverse Recovery Time (trr) | 500ns | Packaging | Bulk |
| Package / Case | DO-203AA, DO-4, Stud | Other Names | 1242-1213 FR12M05GN FR12M05GN-ND |
| Operating Temperature - Junction | -65°C ~ 150°C | Mounting Type | Chassis, Stud Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Diode Type | Standard |
| Detailed Description | Diode Standard 1000V 12A Chassis, Stud Mount DO-4 | Current - Reverse Leakage @ Vr | 25µA @ 100V |
| Current - Average Rectified (Io) | 12A | Capacitance @ Vr, F | - |
