SI9122ADQ-T1-E3

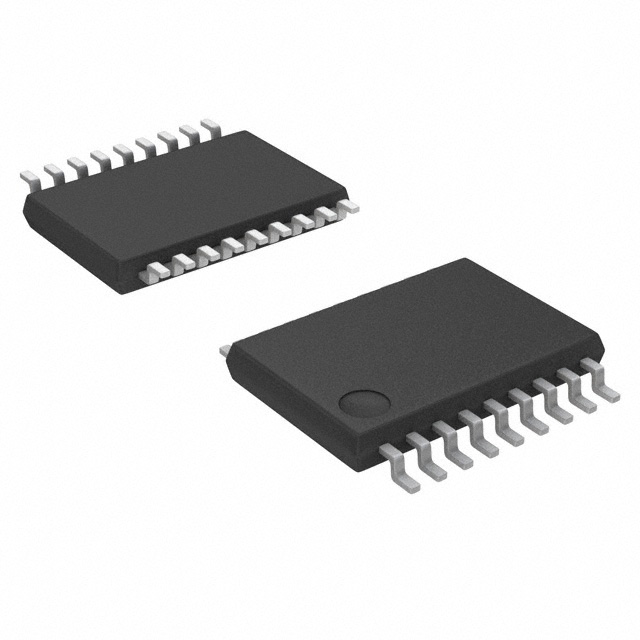

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SI9122ADQ-T1-E3 with confidence from Components-World.HK, 1 Year Warranty
Dowload SI9122ADQ-T1-E3 Details in PDFSee Product Specifications for product details.
Buy SI9122ADQ-T1-E3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SI9122ADQ-T1-E3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | IC REG CTRLR HALF-BRIDGE 20TSSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SI9122ADQ-T1-E3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | IC REG CTRLR HALF-BRIDGE 20TSSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5357 pcs | Data sheet | SI9122A |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 10.5 V ~ 13.2 V |
| Topology | Half-Bridge | Synchronous Rectifier | Yes |
| Supplier Device Package | 20-TSSOP | Series | - |
| Serial Interfaces | - | Packaging | Original-Reel® |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | Output Type | Transistor Driver |
| Output Phases | 1 | Output Configuration | Positive, Isolation Capable |
| Other Names | SI9122ADQ-T1-E3DKR | Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Outputs | 1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Function | Step-Up/Step-Down |
| Frequency - Switching | 500kHz | Duty Cycle (Max) | 92% |
| Detailed Description | Half-Bridge Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 20-TSSOP | Control Features | Current Limit, Sequencing, Soft Start |
| Clock Sync | No | Base Part Number | SI9122 |
