IRLBA3803

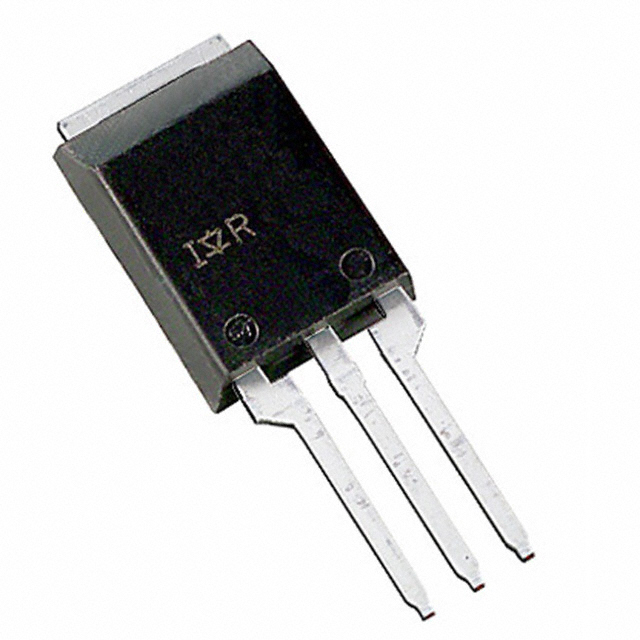

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRLBA3803 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRLBA3803 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRLBA3803 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET N-CH 30V 179A SUPER-220 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 200 pcs | ||||
|---|---|---|---|---|---|
| $1.322 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRLBA3803 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET N-CH 30V 179A SUPER-220 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 26482 pcs | Data sheet | IRLBA3803 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±16V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SUPER-220™ (TO-273AA) | Series | - |
| Rds On (Max) @ Id, Vgs | 5 mOhm @ 71A, 10V | Power Dissipation (Max) | 270W (Tc) |
| Packaging | Tube | Package / Case | Super-220™ |
| Other Names | *IRLBA3803 | Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Input Capacitance (Ciss) (Max) @ Vds | 5000pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 140nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 179A (Tc) 270W (Tc) Through Hole SUPER-220™ (TO-273AA) |
| Current - Continuous Drain (Id) @ 25°C | 179A (Tc) |
