Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B65805C0000R048

B65805C0000R048

B65805C0000R048

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65805C0000R048 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B65805C0000R048
Manufacturer	EPCOS
Description	FERRITE CORE RM 1.8UH N48 2PCS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 75058 pcs
Reference Price (In US Dollars)	500 pcs
Reference Price (In US Dollars)	$0.274

Product parameter
Data sheet

Product parameter

Part Number	B65805C0000R048	Manufacturer	EPCOS
Description	FERRITE CORE RM 1.8UH N48 2PCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	75058 pcs	Data sheet	B65805,6,22, B65539,18 Datasheet
Category	Magnetics - Transformer, Inductor Components	Width	6.80mm
Tolerance	-20%, +30%	Supplier Device Package	RM 5
Series	B65805	Other Names	B65805C R 48 B65805CR48 B65805CR48-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	N48
Manufacturer Standard Lead Time	27 Weeks	Length	14.60mm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Factor (Al)	1.8µH
Height	5.25mm	Gap	Ungapped
Finish	Uncoated	Effective Permeability (µe)	1430
Effective Magnetic Volume (Ve) mm³	433	Effective Length (le) mm	20.8
Effective Area (Ae) mm²	20.8	Diameter	-
Core Type	RM	Core Factor (ΣI/A) mm1	1

Related products
Related news

Related products

Part#:~~B65804B6010T002~~
Manufacturers:~~EPCOS~~
Description:~~BOBBIN COIL FORMER RM 4~~
In Stock:~~72377~~

~~$0.331/pcs~~RFQ

Part#:~~B65805C0000R041~~
Manufacturers:~~EPCOS~~
Description:~~FERRITE CORE~~
In Stock:~~94555~~

~~$0.237/pcs~~RFQ

Part#:~~B65805C0000R035~~
Manufacturers:~~EPCOS~~
Description:~~FERRITE CORE~~
In Stock:~~88656~~

~~$0.265/pcs~~RFQ

Part#:~~B65805C0250A087~~
Manufacturers:~~EPCOS~~
Description:~~FERRITE CORE~~
In Stock:~~103886~~

~~$0.2/pcs~~RFQ

Part#:~~B65805J0000R035~~
Manufacturers:~~EPCOS~~
Description:~~FERRITE CORE~~
In Stock:~~78138~~

~~$0.264/pcs~~RFQ

B65804P2203X000 Image

Part#:~~B65804P2203X000~~
Manufacturers:~~EPCOS~~
Description:~~CLAMP RM 4~~
In Stock:~~235373~~

~~$0.095/pcs~~RFQ

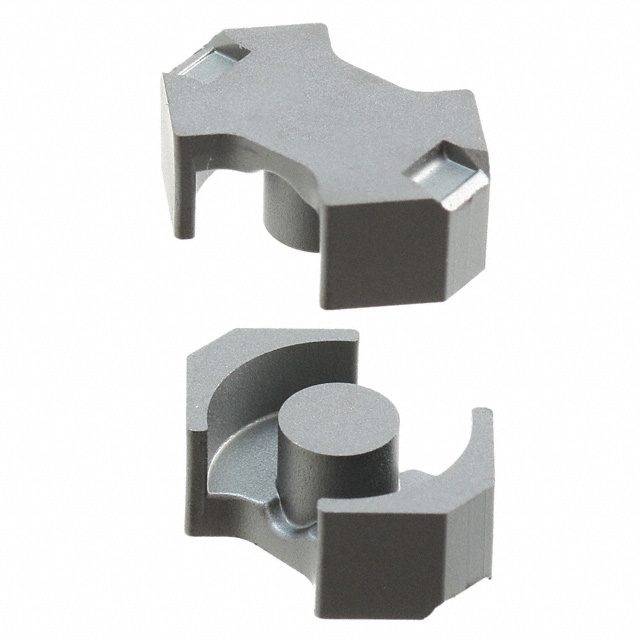

B65805J0000R030 Image
