690-005-299-043

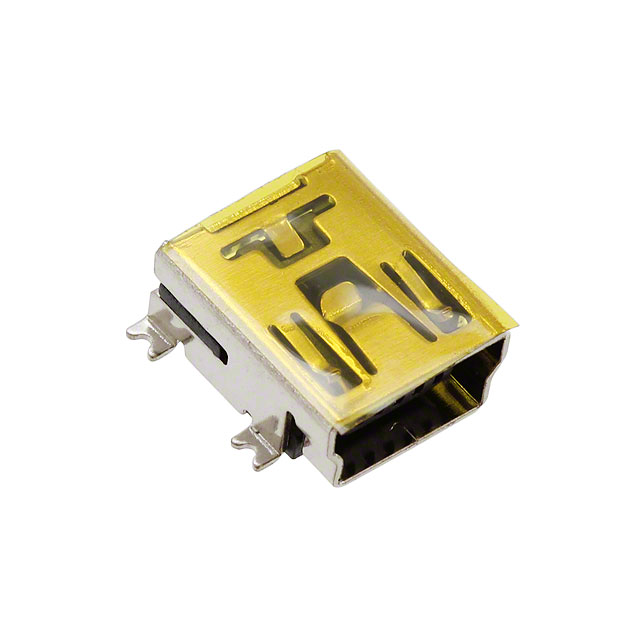

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 690-005-299-043 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 690-005-299-043 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 690-005-299-043 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | CONN MINI USB RCPT RA TYPE B SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | ||
|---|---|---|---|---|---|
| $0.10 | $0.097 | $0.091 | |||
| 5000 pcs | 10000 pcs | 25000 pcs | |||
| $0.088 | $0.082 | $0.079 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 690-005-299-043 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | CONN MINI USB RCPT RA TYPE B SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 287032 pcs | Data sheet | Interconnect Solutions Brochure690 Series Datasheet690-005-299-043 Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Termination | Solder | Specifications | USB 2.0 |
| Shielding | Unshielded | Shell/Shielding Material | Brass |
| Series | 690 | Packaging | Tape & Reel (TR) |
| Other Names | 151-1206-2 | Operating Temperature | -30°C ~ 80°C |
| Number of Ports | 1 | Number of Contacts | 5 |
| Mounting Type | Surface Mount, Right Angle | Mounting Feature | Horizontal |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 1500 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | Black |
| Ingress Protection | - | Gender | Receptacle |
| Features | Board Guide, Solder Retention | Detailed Description | USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle |
| Current Rating | 1A | Contact Finish | Gold |
| Connector Type | USB - mini B |
