Home > Products > Switches > Toggle Switches > 100SP2T6B11M2QEH

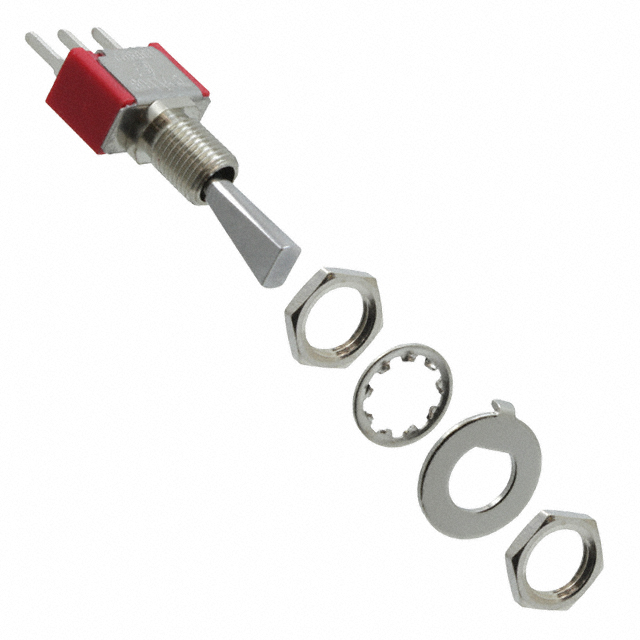

100SP2T6B11M2QEH

100SP2T6B11M2QEH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 100SP2T6B11M2QEH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	100SP2T6B11M2QEH
Manufacturer	E-Switch
Description	SWITCH TOGGLE SPDT 5A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 35027 pcs
Reference Price (In US Dollars)	200 pcs
Reference Price (In US Dollars)	$1.011

Product parameter
Data sheet

Product parameter

Part Number	100SP2T6B11M2QEH	Manufacturer	E-Switch
Description	SWITCH TOGGLE SPDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35027 pcs	Data sheet	100 Series Datasheet 100SP2T6B11M2QEH Drawing
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	120V	Termination Style	PC Pin
Switch Function	On-Mom	Series	100
Panel Cutout Dimensions	Circular - 6.35mm Dia	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	40,000 Cycles	Detailed Description	Toggle Switch SPDT Panel Mount
Current Rating	5A (AC/DC)	Circuit	SPDT
Bushing Thread	1/4-40	Actuator Type	Flat Anti-Rotation
Actuator Material	Brass, Chrome Plated	Actuator Length	12.30mm
