Home > Products > Switches > Toggle Switches > 100DP4T2B3M1QEH

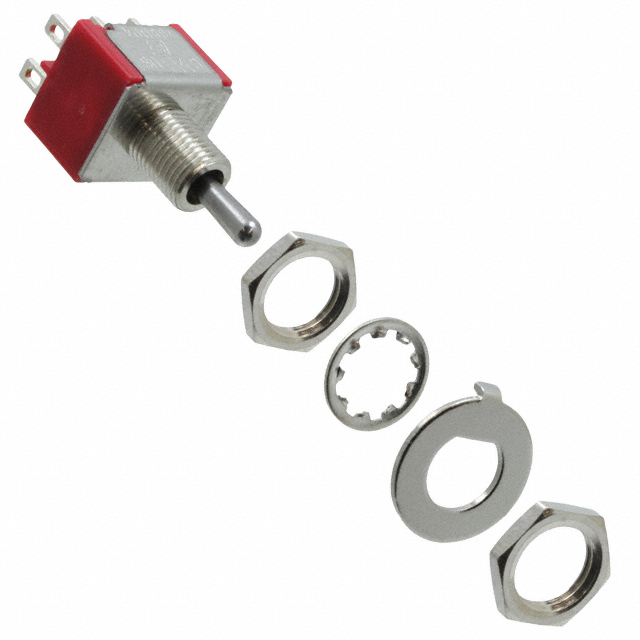

100DP4T2B3M1QEH

100DP4T2B3M1QEH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 100DP4T2B3M1QEH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	100DP4T2B3M1QEH
Manufacturer	E-Switch
Description	SWITCH TOGGLE DPDT 5A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 26214 pcs
Reference Price (In US Dollars)	216 pcs
Reference Price (In US Dollars)	$1.155

Product parameter
Data sheet

Product parameter

Part Number	100DP4T2B3M1QEH	Manufacturer	E-Switch
Description	SWITCH TOGGLE DPDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26214 pcs	Data sheet	100 Series Datasheet 100DP4T2B3M1QEH Drawing
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	120V	Termination Style	Solder Lug
Switch Function	Mom-Off-Mom	Series	100
Panel Cutout Dimensions	Circular - 6.35mm Dia	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	40,000 Cycles	Detailed Description	Toggle Switch DPDT Panel Mount
Current Rating	5A (AC/DC)	Circuit	DPDT
Bushing Thread	1/4-40	Actuator Type	Standard Round
Actuator Material	Brass, Chrome Plated	Actuator Length	6.86mm
