Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - LED Drivers > AP1694AEV10

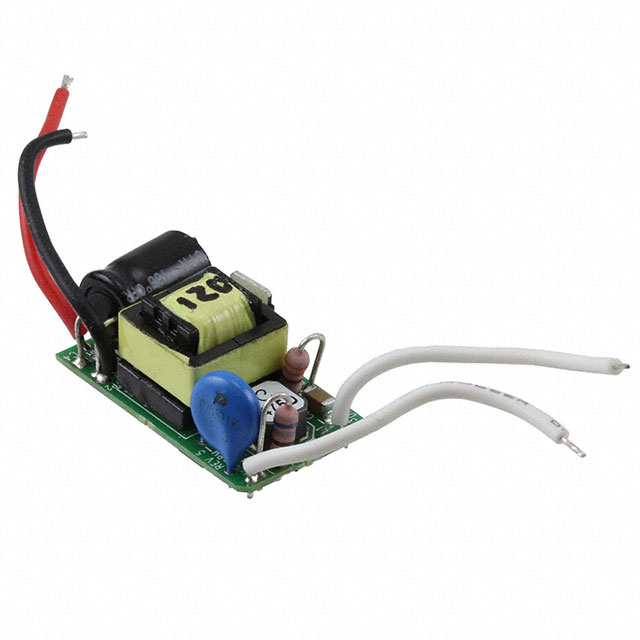

AP1694AEV10

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AP1694AEV10 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AP1694AEV10
Manufacturer	Diodes Incorporated
Description	EVAL BOARD FOR AP1694A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1510 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$19.848

Product parameter

Product parameter

Part Number	AP1694AEV10	Manufacturer	Diodes Incorporated
Description	EVAL BOARD FOR AP1694A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1510 pcs	Data sheet
Category	Development Boards, Kits, Programmers	Voltage - Output	12V
Voltage - Input	100 ~ 135 VAC	Utilized IC / Part	AP1694A
Supplied Contents	Board(s)	Series	-
Outputs and Type	1, Non-Isolated	Other Names	AP1694AEV10DI
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Dimmable
Detailed Description	AP1694A 1, Non-Isolated Output LED Driver Evaluation Board	Current - Output / Channel	400mA
