PJRAS2X1S01AUX

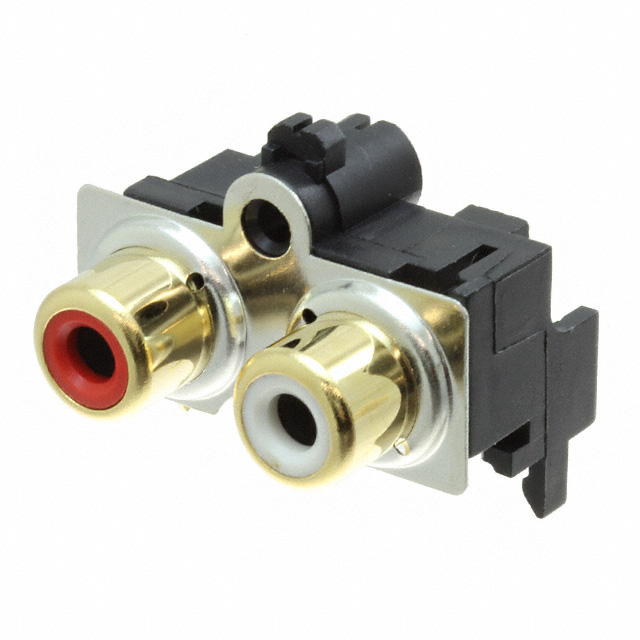

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJRAS2X1S01AUX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJRAS2X1S01AUX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJRAS2X1S01AUX |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCA JACK MONO 3.2MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.818 | $0.624 | $0.586 | $0.56 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.535 | $0.484 | $0.446 | $0.414 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PJRAS2X1S01AUX | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCA JACK MONO 3.2MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85665 pcs | Data sheet | Jack SchematicsPJRAS2X1S01,02(X,AUX) Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 34VAC/DC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Mono | Shielding | Shielded |
| Series | PJR | Panel Hole Size | - |
| Packaging | Bulk | Other Names | PJRAS2X1S01AUX-ND SC1858 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Sets of 2 Conductors, 4 Contacts |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | Red, White | Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
| Includes | - | Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Gender | Female | Features | Grounding Tab |
| Detailed Description | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder | Current Rating | 2A |
| Contact Material - Plating | Gold | Contact Material | Copper Alloy |
| Connector Type | Phono (RCA) Jack | Cable Opening | - |
| Body Material | Copper Alloy | Body Color | Gold, White |
| Actual Diameter | - |
