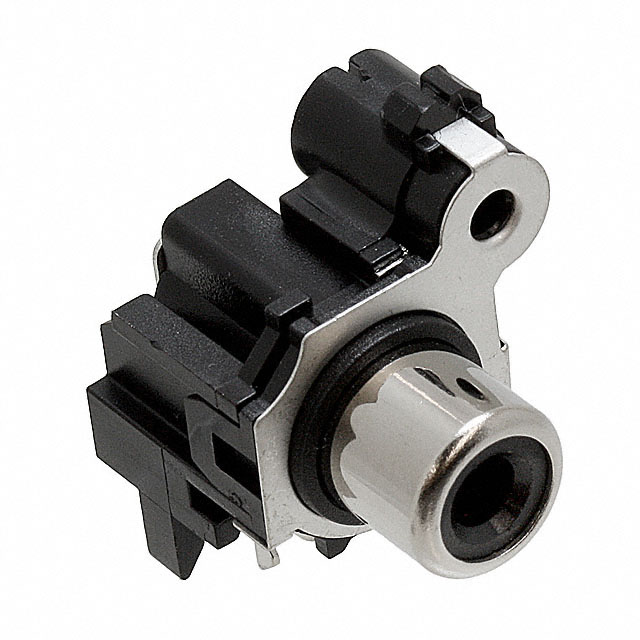

PJRAS1X1S01X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJRAS1X1S01X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJRAS1X1S01X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJRAS1X1S01X |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCA JACK MONO 3.2MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.33 | $0.243 | $0.229 | $0.219 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.21 | $0.191 | $0.186 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PJRAS1X1S01X | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCA JACK MONO 3.2MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 104942 pcs | Data sheet | Jack SchematicsPJRAS1X1X__X Series Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 34VAC/DC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Mono | Shielding | Shielded |
| Series | PJR | Panel Hole Size | - |
| Packaging | Bulk | Other Names | PJRAS1X1S01 PJRAS1X1S01-ND PJRAS1X1S01X-ND SC1855 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Mating Length/Depth | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Does Not Contain Switch | Insulation Color | Black |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) | Includes | - |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) | Gender | Female |
| Features | Grounding Tab | Detailed Description | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder |
| Current Rating | 2A | Contact Material - Plating | Tin |
| Contact Material | Copper Alloy | Connector Type | Phono (RCA) Jack |
| Cable Opening | - | Body Material | Copper |
| Body Color | Silver, Black | Actual Diameter | - |
