Home > Products > Connectors, Interconnects > D-Sub Connectors > 164A18199X

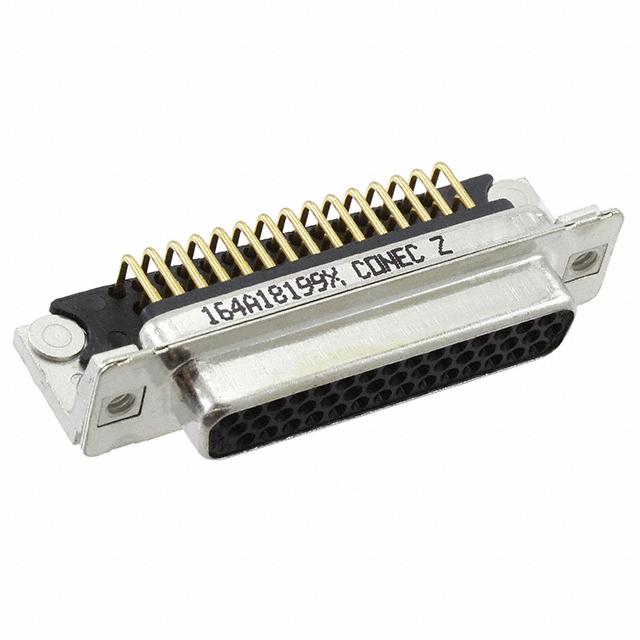

164A18199X

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 164A18199X with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	164A18199X
Manufacturer	Conec
Description	CONN DSUB HD RCPT 44POS R/A SLDR
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 6126 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$8.318	$7.509	$7.194	$6.745
	$6.52	$6.16	$5.98

Product parameter
Data sheet

Product parameter

Part Number	164A18199X	Manufacturer	Conec
Description	CONN DSUB HD RCPT 44POS R/A SLDR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6126 pcs	Data sheet	164A18xx9X Drawing
Category	Connectors, Interconnects	Wire Gauge	-
Voltage Rating	60V	Termination	Solder
Shell Size, Connector Layout	3 (DB, B) High Density	Shell Material, Finish	Steel, Tin Plated
Series	164A	Packaging	Bulk
Other Names	164A18199X-ND 626-2088	Operating Temperature	-55°C ~ 125°C
Number of Rows	3	Number of Positions	44
Mounting Type	Board Edge, Through Hole, Right Angle	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP20	Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (4-40)	Features	Board Lock
Detailed Description	44 Position D-Sub, High Density Receptacle, Female Sockets Connector	Current Rating	3A
Contact Type	Signal	Contact Material	Copper Alloy
Contact Form	Machined	Contact Finish Thickness	8.00µin (0.203µm)
Contact Finish	Gold	Connector Type	Receptacle, Female Sockets
Connector Style	D-Sub, High Density	Color	Black
Backset Spacing	0.314" (7.98mm)

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
