M83513/01-FC

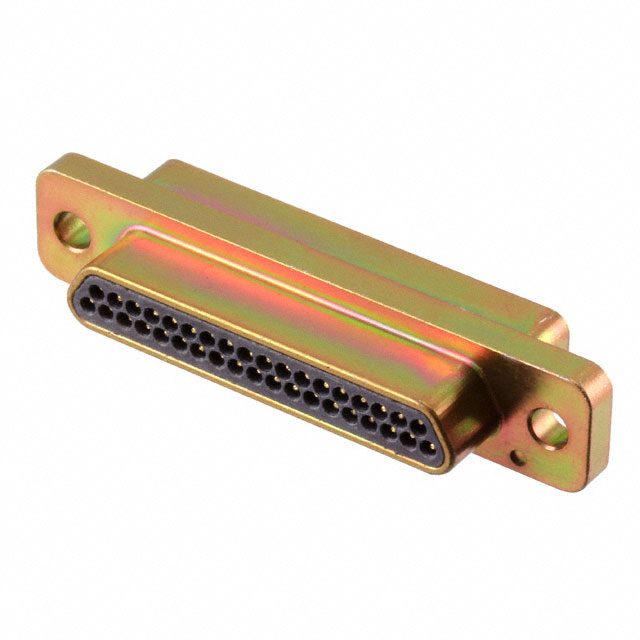

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M83513/01-FC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M83513/01-FC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M83513/01-FC |
|---|---|
| Manufacturer | ITT Cannon, LLC |
| Description | CONN MICRO-D PLUG 37POS STR |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $39.665 | $37.33 | $36.164 | $33.831 | $31.964 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M83513/01-FC | Manufacturer | ITT Cannon, LLC |
|---|---|---|---|
| Description | CONN MICRO-D PLUG 37POS STR | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1231 pcs | Data sheet | Micro Miniature Connector Catalog |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Copper Alloy |
| Voltage | - | Type Attributes | - |
| Termination | Solder Cup | Stacking Direction | Signal |
| Shell Size - Insert (Convert From) | Aluminum, Yellow Chromate Cadmium Plated | Series | Military, MIL-DTL-83513 |
| RoHS Status | Bulk | Pitch - Connector | - |
| Other Names | 1200-1006 1200-1006-MIL 154180-0000 IM83513/01-FC IM83513/01-FC-ND M83513/01-FC-ND M83513/01-FCPEI M83513/01-FCPEI-ND M8351301FC |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 37 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 11 Weeks |
| Manufacturer Part Number | M83513/01-FC | Length - Threaded Portion Below Head | - |
| Features | - | Expanded Description | 37 Position D-Type, Micro-D Plug, Male Pins Connector, Free Hanging (In-Line) Solder Cup |
| Description | CONN MICRO-D PLUG 37POS STR | Current Rating (Per Contact) | Housing/Shell (Unthreaded) |
| Current Rating | 3A | Contact Form | 0.050 Pitch x 0.043 Row to Row |
| Contact Finish Thickness | Gold | Connector Usage | D-Type, Micro-D |
| Connector Type | Plug, Male Pins | Color | - |
| Cable Opening | Liquid Crystal Polymer (LCP) | Cable Diameter | 50µin (1.27µm) |
| Backset Spacing | - |
