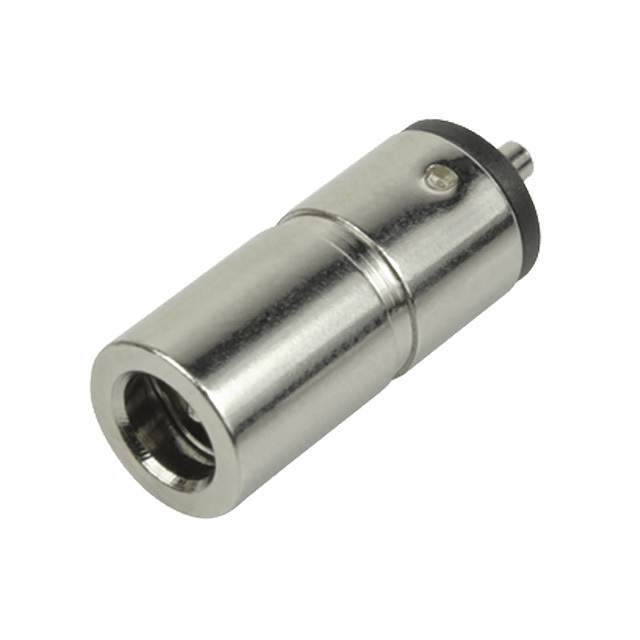

PR-1135
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PR-1135 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PR-1135 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PR-1135 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | POWER JACK, 1.1 X 3.5 MM, STRAIG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.296 | $0.259 | $0.244 | $0.234 | $0.224 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.203 | $0.183 | $0.163 | $0.148 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PR-1135 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | POWER JACK, 1.1 X 3.5 MM, STRAIG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 145119 pcs | Data sheet | PR-1135 Datasheet |
| Category | Connectors, Interconnects | Voltage - Rated | 24VDC |
| Thread Size | - | Termination | Solder Cup |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Other Names | 102-4760 |
| Operating Temperature | -25°C ~ 70°C | Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | Not Applicable | Mating Length/Depth | 0.374" (9.50mm) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | Black | Ingress Protection | - |
| Industry Recognized Mating Diameter | 1.00mm ID (0.039"), 3.60mm OD (0.142") | Includes | - |
| Housing Material | - | Gender | Male |
| Features | - | Detailed Description | Power Barrel Connector Jack 1.00mm ID (0.039"), 3.60mm OD (0.142") Free Hanging (In-Line) |
| Current Rating | 5A | Contact Material - Plating | Nickel |
| Contact Material | Brass | Connector Type | Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Body Material | Brass |
| Body Color | Silver | Actual Diameter | 0.039" (1.00mm ID), 0.236" (6.00mm OD) |
