Home > Products > Switches > Snap Action, Limit Switches > 11TL402

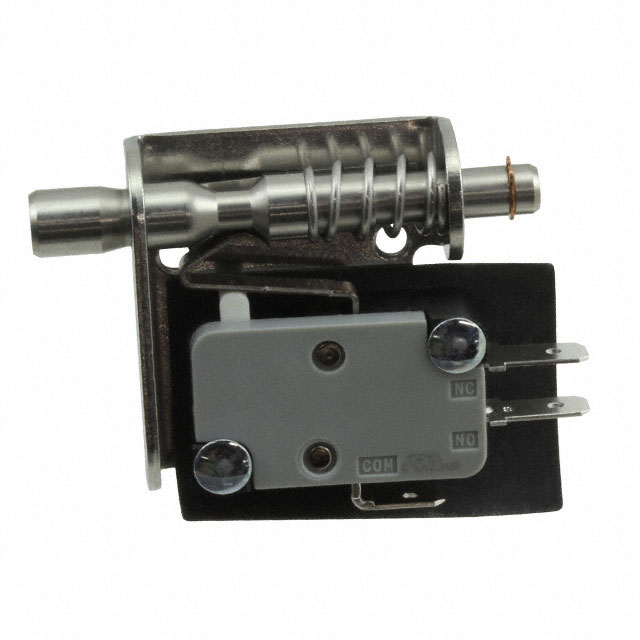

11TL402

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 11TL402 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	11TL402
Manufacturer	C&K
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 7720 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$8.818	$6.613	$6.062	$5.695
	$5.327	$5.144	$4.96

Product parameter
Data sheet

Product parameter

Part Number	11TL402	Manufacturer	C&K
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7720 pcs	Data sheet	TL Series Datasheet
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.187" (4.7mm)
Switch Function	On-Mom	Series	TL
Release Force	-	Pretravel	-
Packaging	Bulk	Overtravel	-
Other Names	*11TL402 11TL402-ND CKN10603 Q1869341	Operating Temperature	-55°C ~ 150°C
Operating Position	-	Operating Force	-
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	150,000 Cycles
Differential Travel	-	Current Rating	15A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Push-Pull Plunger
