HC7-2R2-R

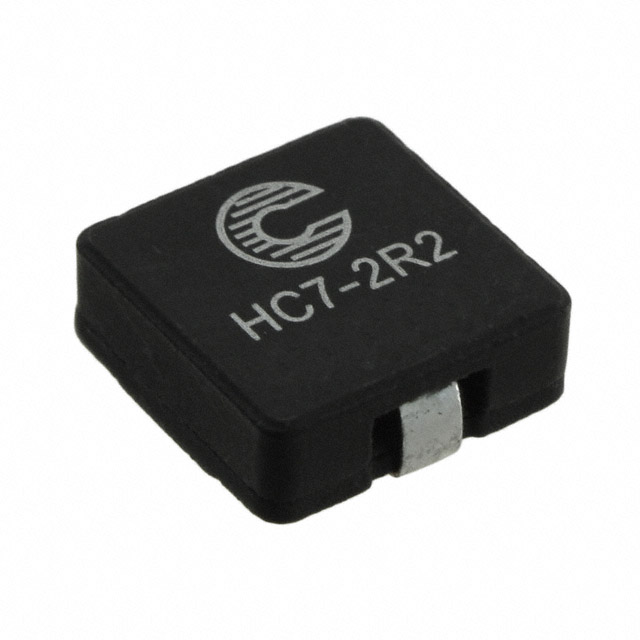

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HC7-2R2-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HC7-2R2-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HC7-2R2-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 2.2UH 13A 5.2 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.13 | $1.936 | $1.317 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HC7-2R2-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 2.2UH 13A 5.2 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22687 pcs | Data sheet | HC7 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.543" L x 0.512" W (13.80mm x 13.00mm) | Shielding | Unshielded |
| Series | HC7 | Ratings | - |
| Q @ Freq | - | Packaging | Original-Reel® |
| Package / Case | Nonstandard | Other Names | 513-1166-6 |
| Operating Temperature | -40°C ~ 155°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 2.2µH |
| Height - Seated (Max) | 0.217" (5.50mm) | Frequency - Self Resonant | - |
| Detailed Description | 2.2µH Unshielded Wirewound Inductor 13A 5.2 mOhm Max Nonstandard | DC Resistance (DCR) | 5.2 mOhm Max |
| Current Rating | 13A | Current - Saturation | 23.6A |
