Home > Products > Inductors, Coils, Chokes > Fixed Inductors > PM104SH-1R5-RC

PM104SH-1R5-RC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PM104SH-1R5-RC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PM104SH-1R5-RC
Manufacturer	Bourns, Inc.
Description	FIXED IND 1.5UH 7.2A 5.2 MOHM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 84730 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.267

Product parameter
Data sheet

Product parameter

Part Number	PM104SH-1R5-RC	Manufacturer	Bourns, Inc.
Description	FIXED IND 1.5UH 7.2A 5.2 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	84730 pcs	Data sheet	PM104SH Series
Category	Inductors, Coils, Chokes	Type	Wirewound
Tolerance	±30%	Supplier Device Package	-
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)	Shielding	Shielded
Series	PM104SH	Ratings	-
Q @ Freq	14 @ 7.96MHz	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Ferrite	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	7.96MHz
Inductance	1.5µH	Height - Seated (Max)	0.161" (4.10mm)
Frequency - Self Resonant	65MHz	Detailed Description	1.5µH Shielded Wirewound Inductor 7.2A 5.2 mOhm Max Nonstandard
DC Resistance (DCR)	5.2 mOhm Max	Current Rating	7.2A
Current - Saturation	7A

Related products
Related news

Related products

PM104SH-2R5-RC Image

Part#:~~PM104SH-2R5-RC~~
Manufacturers:~~Bourns, Inc.~~
Description:~~FIXED IND 2.5UH 6.1A 12.5 MOHM~~
In Stock:~~79894~~

~~$0.262/pcs~~RFQ

PM1038S-R15M-RC Image

Part#:~~PM1038S-R15M-RC~~
Manufacturers:~~Bourns, Inc.~~
Description:~~FIXED IND 150NH 34A 1.3 MOHM SMD~~
In Stock:~~76195~~

~~$0.477/pcs~~RFQ

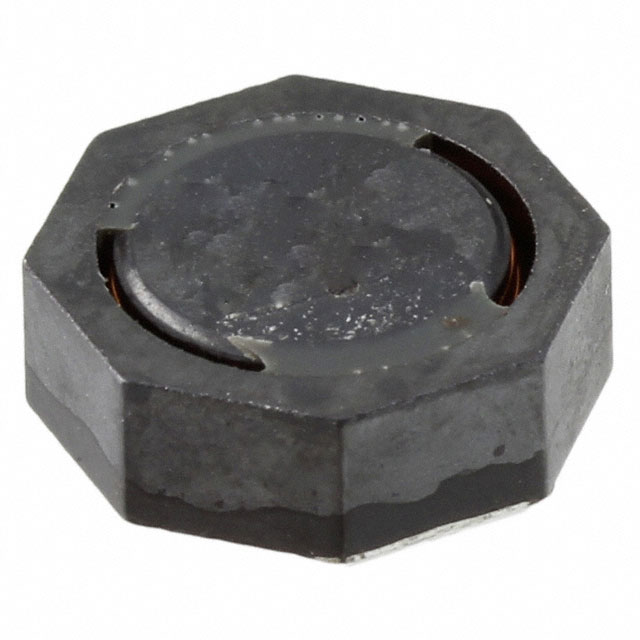

PM104SH-470-RC Image
