SCEP147L-1R1

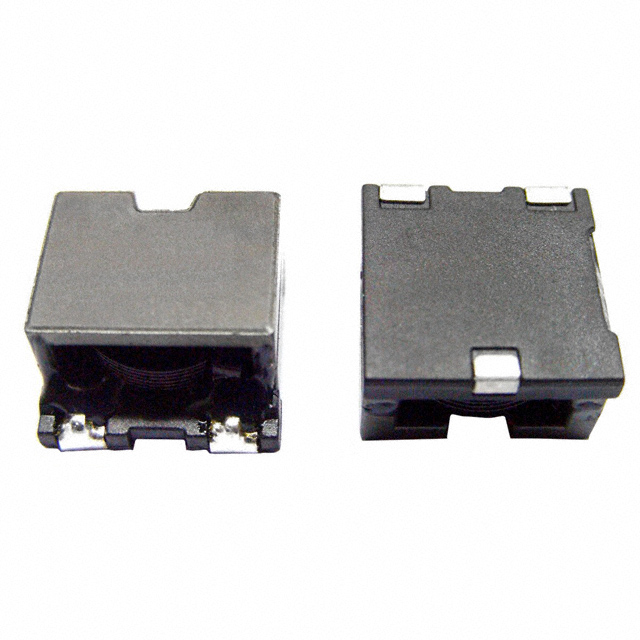

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SCEP147L-1R1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SCEP147L-1R1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SCEP147L-1R1 |
|---|---|
| Manufacturer | Bel |
| Description | FIXED IND 1.1UH 22A 2.65 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 300 pcs | ||||
|---|---|---|---|---|---|
| $0.569 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SCEP147L-1R1 | Manufacturer | Bel |
|---|---|---|---|
| Description | FIXED IND 1.1UH 22A 2.65 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65474 pcs | Data sheet | SCEP147L Series |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.591" L x 0.587" W (15.00mm x 14.90mm) | Shielding | Shielded |
| Series | SCEP147L | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 1.1µH | Height - Seated (Max) | 0.319" (8.10mm) |
| Frequency - Self Resonant | - | Detailed Description | 1.1µH Shielded Inductor 22A 2.65 mOhm Max Nonstandard |
| DC Resistance (DCR) | 2.65 mOhm Max | Current Rating | 22A |
| Current - Saturation | 26.4A |
