25-0503-30

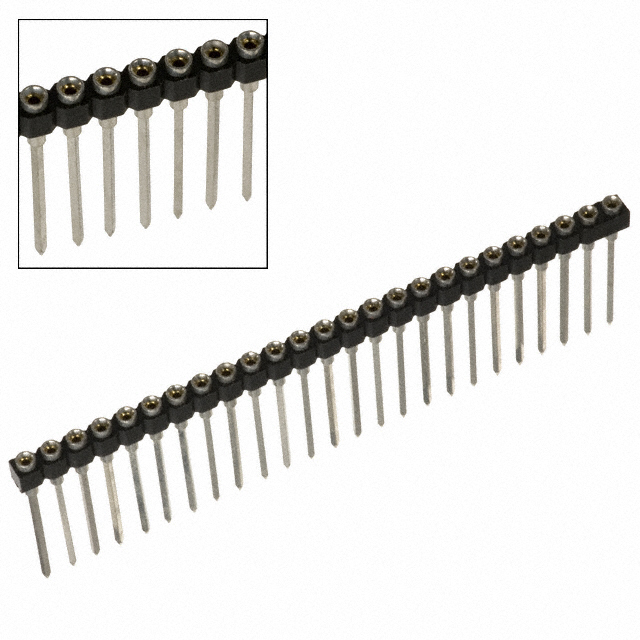

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 25-0503-30 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 25-0503-30 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 25-0503-30 |
|---|---|
| Manufacturer | Aries Electronics, Inc. |
| Description | CONN SOCKET SIP 25POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $4.037 | $3.512 | $2.809 | $2.37 | $2.239 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 25-0503-30 | Manufacturer | Aries Electronics, Inc. |
|---|---|---|---|
| Description | CONN SOCKET SIP 25POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15669 pcs | Data sheet | 0503 Series Pin-Line Socket |
| Category | Connectors, Interconnects | Type | SIP |
| Termination Post Length | 0.500" (12.70mm) | Termination | Wire Wrap |
| Series | 0503 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 25050330 A209 |
Operating Temperature | - |
| Number of Positions or Pins (Grid) | 25 (1 x 25) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 HB |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Features | - |
| Current Rating | 3A | Contact Resistance | - |
| Contact Material - Post | Brass | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
