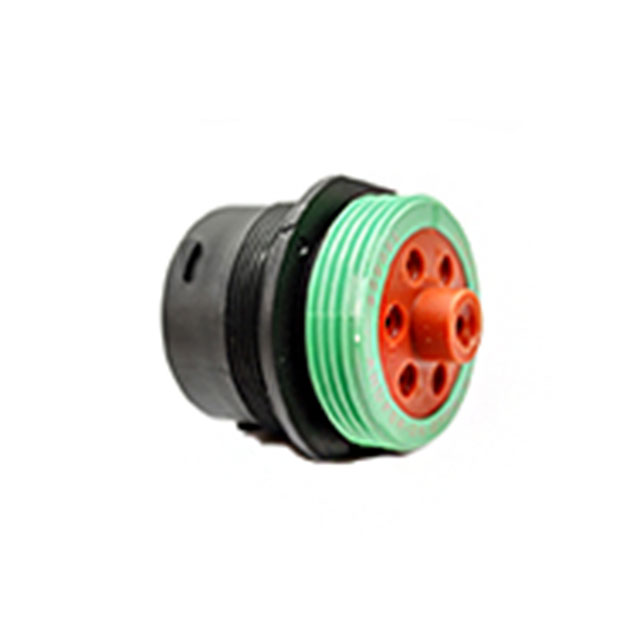

AHDP04-24-07PN-WTA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AHDP04-24-07PN-WTA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AHDP04-24-07PN-WTA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AHDP04-24-07PN-WTA |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Description | CONN RCPT HSNG MALE 7POS PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.783 | $3.62 | $3.291 | $3.126 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.044 | $2.715 | $2.55 | $2.254 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AHDP04-24-07PN-WTA | Manufacturer | Amphenol Tuchel Electronics |
|---|---|---|---|
| Description | CONN RCPT HSNG MALE 7POS PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15582 pcs | Data sheet | AHDP04-24-07PN-WTA DrawingDura|Mate™ Catalog |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 24-7 | Shell Material | Thermoplastic |
| Shell Finish | - | Series | AHDP Dura|Mate™ |
| Packaging | Bulk | Other Names | 889-2546 |
| Orientation | Keyed | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 7 | Note | Contacts Not Included; Jam Nut Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Thermoplastic | Ingress Protection | IP67/69K - Dust Tight, Water Resistant, Waterproof |
| Includes | - | Housing Color | Black |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 7 Position Circular Connector Receptacle Housing Panel Mount | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - | Contact Type | Crimp |
| Contact Size | 12 (6), 8 Radsok (1) | Contact Shape | Circular |
| Connector Type | Receptacle Housing |
