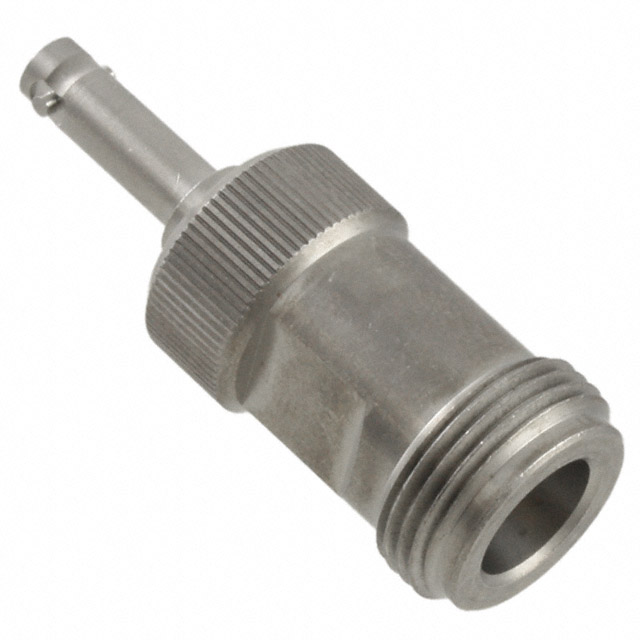

APH-NJ-HDBNCJ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APH-NJ-HDBNCJ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APH-NJ-HDBNCJ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APH-NJ-HDBNCJ |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT HDBNC JACK TO N JACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $22.345 | $21.029 | $20.372 | $19.058 | $18.006 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | APH-NJ-HDBNCJ | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT HDBNC JACK TO N JACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1733 pcs | Data sheet | APH-NJ-HDBNCJ Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | APHNJHDBNCJ ARF1919 |
Operating Temperature | -65°C ~ 165°C |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Frequency - Max | 4GHz | Features | - |
| Fastening Type | Bayonet Lock, Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector BNC HD Jack, Female Socket To N Jack, Female Socket 75 Ohm | Convert To (Adapter End) | N Jack, Female Socket |
| Convert From (Adapter End) | BNC HD Jack, Female Socket | Conversion Type | Between Series |
| Center Gender | Female to Female | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Body Material | Stainless Steel |
| Body Finish | - | Adapter Type | Jack to Jack |
| Adapter Series | BNC, HD to N |
