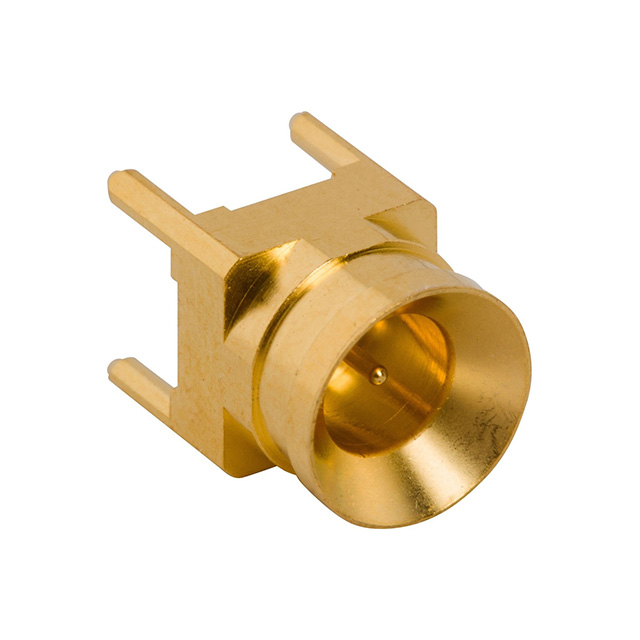

920-503J-53P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 920-503J-53P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 920-503J-53P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 920-503J-53P |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN HD-EFI JACK 50 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.176 | $2.089 | $1.915 | $1.827 | $1.74 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.523 | $1.479 | $1.262 | $1.175 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 920-503J-53P | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN HD-EFI JACK 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29977 pcs | Data sheet | 920-503J-53P Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | HD-EFI | Packaging | Tray |
| Other Names | ARF3151 | Operating Temperature | -45°C ~ 125°C |
| Number of Ports | 1 | Mounting Type | Through Hole |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mating Cycles | 200 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.1dB |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 6GHz | Features | Smooth Bore |
| Fastening Type | Push-Pull | Dielectric Material | Liquid Crystal Polymer (LCP) |
| Detailed Description | EFI, HD Connector Plug, Male Pin 50 Ohm Through Hole Solder | Contact Termination | Solder |
| Connector Type | Plug, Male Pin | Connector Style | EFI, HD |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Cable Group | - | Body Material | Brass |
| Body Finish | Nickel |
