531-40047-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 531-40047-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 531-40047-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 531-40047-3 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN F JACK R/A 75 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.427 | $2.324 | $2.122 | $2.021 | $1.92 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.718 | $1.617 | $1.415 | $1.344 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 531-40047-3 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN F JACK R/A 75 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22227 pcs | Data sheet | 531-40047-3 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | 531400473 ARF1715 |
Operating Temperature | -40°C ~ 60°C |
| Number of Ports | 1 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |

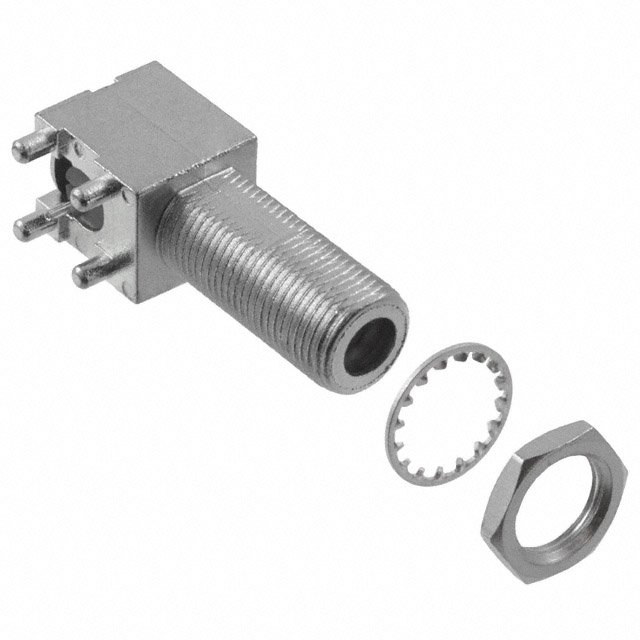

| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 75 Ohm | Housing Color | Silver |
| Frequency - Max | 3GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Polymethylpentene (PMP) |
| Detailed Description | F Type Connector Jack, Female Socket 75 Ohm Panel Mount, Through Hole, Right Angle Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | F Type |
| Center Contact Plating | Tin | Center Contact Material | Beryllium Copper |
| Cable Group | - | Body Material | Zinc |
| Body Finish | Tin |
