122382
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 122382 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 122382 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 122382 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN TNC JACK STR 75 OHM CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.493 | $4.086 | $3.984 | $3.678 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.473 | $3.167 | $2.962 | $2.717 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 122382 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN TNC JACK STR 75 OHM CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11217 pcs | Data sheet | 122382 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | 122382-ND ARF2927 |
| Operating Temperature | - | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.18dB | Ingress Protection | - |

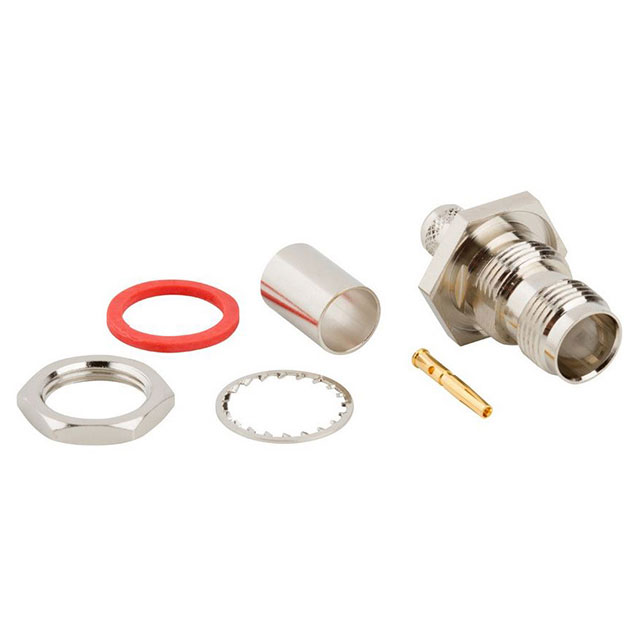

| Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut | Impedance | 75 Ohm |
| Housing Color | Silver | Frequency - Max | 1GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | TNC Connector Jack, Female Socket 75 Ohm Panel Mount Crimp |
| Contact Termination | Crimp | Connector Type | Jack, Female Socket |
| Connector Style | TNC | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-6, 6A, 54, 143, 212, Belden 1152A, 89248, 9290 |
| Body Material | Brass | Body Finish | Nickel |
