112803
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 112803 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 112803 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 112803 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN BNC RCPT STR 75 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.958 | $6.462 | $5.799 | $5.634 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.971 | $4.639 | $4.54 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 112803 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC RCPT STR 75 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7479 pcs | Data sheet | 112803 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | ACX2269 |
| Operating Temperature | - | Number of Ports | 1 |
| Mounting Type | Panel Mount; Surface Mount, Through Hole | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |

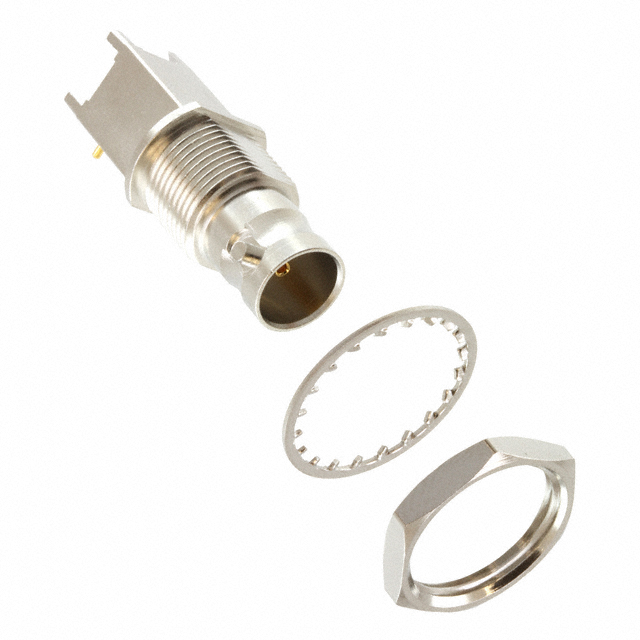

| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 75 Ohm |
| Housing Color | Silver | Frequency - Max | 3GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC Connector Receptacle, Female Socket 75 Ohm Panel Mount; Surface Mount, Through Hole Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Female Socket |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
