112740-14

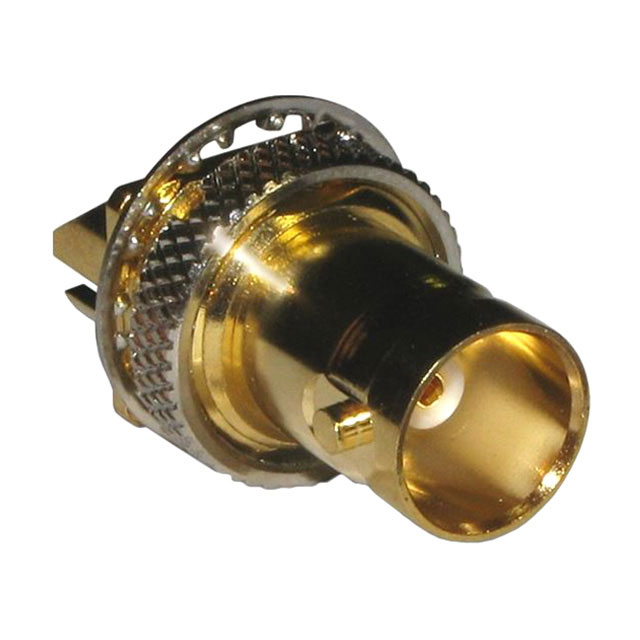

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 112740-14 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 112740-14 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 112740-14 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN BNC RCPT STR 75OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.154 | $2.065 | $1.885 | $1.795 | $1.706 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.526 | $1.436 | $1.257 | $1.194 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 112740-14 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC RCPT STR 75OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26688 pcs | Data sheet | 112740-XX Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 112740-14-ND ARF2758 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch; Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.2dB | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 75 Ohm |
| Housing Color | Gold | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC Connector Receptacle, Female Socket 75 Ohm Board Edge, End Launch; Panel Mount Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Female Socket |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
