034-5020

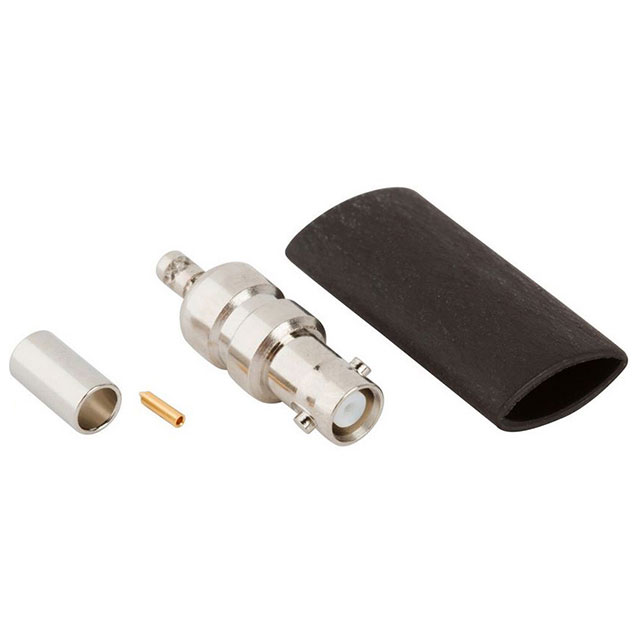

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 034-5020 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 034-5020 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 034-5020 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN HDBNC JACK STR 50OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $2.722 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 034-5020 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN HDBNC JACK STR 50OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12691 pcs | Data sheet | 034-5020 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Other Names | 34-5020 | Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 6GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | BNC, HD Connector Jack, Female Socket 50 Ohm Free Hanging (In-Line) Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | BNC, HD |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 | Body Material | Brass |
| Body Finish | Nickel |
