HFW15S-2STE1

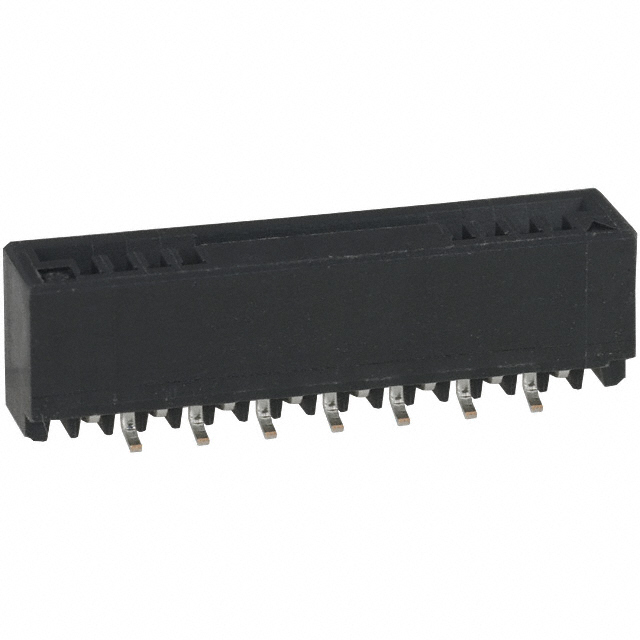

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HFW15S-2STE1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HFW15S-2STE1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HFW15S-2STE1 |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN FFC FPC VERT 15POS 1MM SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HFW15S-2STE1 | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FFC FPC VERT 15POS 1MM SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4412 pcs | Data sheet | HFWxxS-2STxLF Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Series | HFW |
| Pitch | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 15 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 30 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Housing Material | Polyamide (PA6T), Nylon 6T, Glass Filled | Housing Color | Black |
| Height Above Board | 0.209" (5.30mm) | Flat Flex Type | FFC, FPC |
| Features | - | FFC, FCB Thickness | 0.30mm, 0.33mm |
| Detailed Description | 15 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Surface Mount | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin Alloy | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight, Tapered | Actuator Material | - |
| Actuator Color | - |
