PT2S7LB2

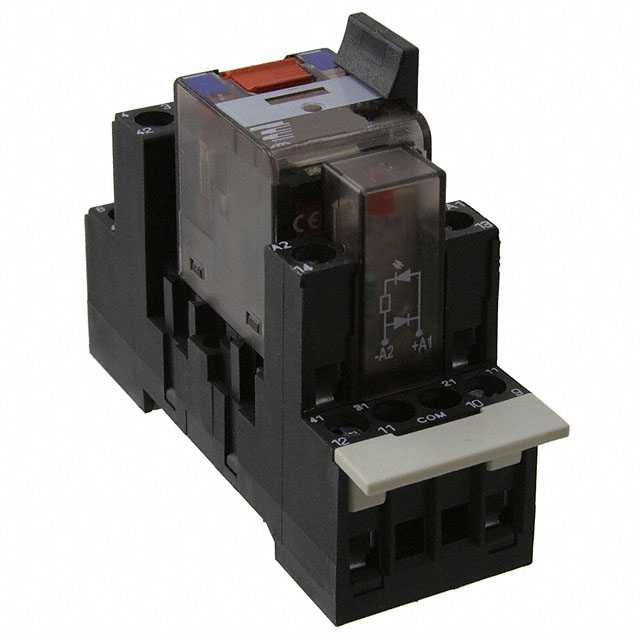

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PT2S7LB2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PT2S7LB2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PT2S7LB2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE DPDT 12A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $10.226 | $9.715 | $9.203 | $8.692 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $8.181 | $7.669 | $7.158 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PT2S7LB2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 12A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4554 pcs | Data sheet | PT Relay Package |
| Category | Relays | Turn On Voltage (Max) | 9 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | Screw Terminal |
| Switching Voltage | 400VAC - Max | Series | PT, SCHRACK |
| Release Time | 18ms | Relay Type | General Purpose with Socket |
| Packaging | Bulk | Other Names | 7-1415074-1 7-1415074-1-ND 714150741 PB1503 PT2S7LB2-ND |
| Operating Temperature | -40°C ~ 70°C | Operate Time | 15ms |
| Mounting Type | DIN Rail | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 27 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Diode, LED Indicator, Mechanical Indicator, Test Button | Detailed Description | General Purpose with Socket Relay DPDT (2 Form C) 12VDC Coil DIN Rail |
| Contact Rating (Current) | 12A | Contact Material | Silver Nickel (AgNi) |
| Contact Form | DPDT (2 Form C) | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 192 Ohms |
| Coil Power | 750 mW | Coil Current | 62.5mA |
