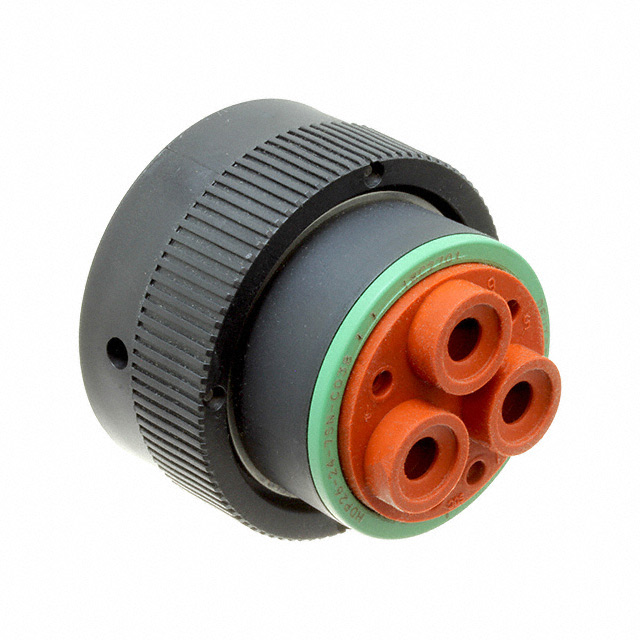

HDP26-24-7SN-C038
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDP26-24-7SN-C038 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDP26-24-7SN-C038 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDP26-24-7SN-C038 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PLUG HSNG FMALE 7POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.242 | $5.797 | $5.202 | $5.054 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.459 | $4.162 | $4.073 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDP26-24-7SN-C038 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PLUG HSNG FMALE 7POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8338 pcs | Data sheet | HDP Series Spec SheetHDP Series Spec Sheet |
| Category | Connectors, Interconnects | Type | For Female Sockets |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 24-7 | Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Finish | - | Series | HDP20 |
| Packaging | Bulk | Other Names | 1734-1744 HDP26-24-7SN-C038-ND |
| Orientation | Keyed | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 7 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Material Flammability Rating | UL94 V-1 | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | - |
| Housing Color | Black | Features | Coupling Nut |
| Fastening Type | Bayonet Lock | Detailed Description | 7 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut |
| Coupling Nut Material, Plating | Polyamide (PA66), Nylon 6/6, Glass Filled | Coupling Nut Diameter | 1.950" (49.53mm) |
| Contact Type | Crimp | Contact Size | 4 (3), 16 (4) |
| Contact Shape | Circular | Connector Type | Plug Housing |
