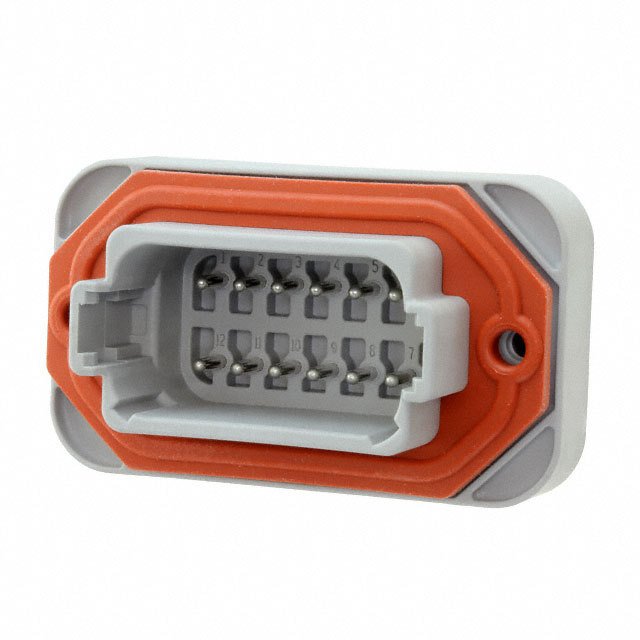

DT15-12PA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DT15-12PA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DT15-12PA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DT15-12PA |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DT RECP ASM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.952 | $3.78 | $3.437 | $3.265 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.179 | $2.835 | $2.663 | $2.354 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DT15-12PA | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DT RECP ASM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13959 pcs | Data sheet | DT15-12Px Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VDC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DT |
| Pitch - Mating | 0.175" (4.44mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 1734-1027 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Panel Mount, Through Hole | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 1.185" (30.10mm) | Insulation Color | Gray |
| Features | Mounting Flange | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Panel Mount, Through Hole 12 position 0.175" (4.44mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.122" (3.10mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Nickel | Connector Type | Header |
| Applications | Automotive |
