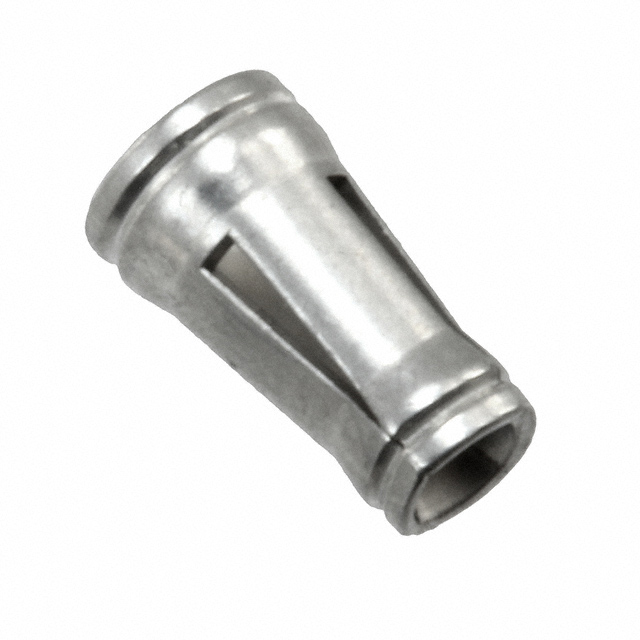

8134-HC-12P3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8134-HC-12P3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8134-HC-12P3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8134-HC-12P3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PIN RCPT .035-.045 PRESSFIT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.272 | $0.255 | $0.229 | $0.204 | $0.195 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.178 | $0.17 | $0.14 | $0.127 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8134-HC-12P3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PIN RCPT .035-.045 PRESSFIT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 173653 pcs | Data sheet | AUGAT HOLTITE Sockets Prod Spec8134-HC, 1437zzz DrawingAUGAT HOLTITE Sockets Appl Spec |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | - | Series | HOLTITE |
| Pin Hole Diameter | 0.052" (1.32mm) | Packaging | Bulk |
| Other Names | 6-1437514-0 6-1437514-0-ND A114106 |
Operating Temperature | -55°C ~ 105°C |
| Mounting Hole Diameter | 0.082" (2.08mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 17 Weeks | Length - Overall | 0.156" (3.96mm) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insertion Force | - |
| Flange Diameter | - | Features | - |
| Detailed Description | Pin Receptacle Connector 0.035" ~ 0.045" (0.89mm ~ 1.14mm) No Tail Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 80.0µin (2.03µm) | Contact Finish | Tin-Lead |
| Board Thickness | 0.050" (1.27mm) | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.035" ~ 0.045" (0.89mm ~ 1.14mm) |
