796864-3

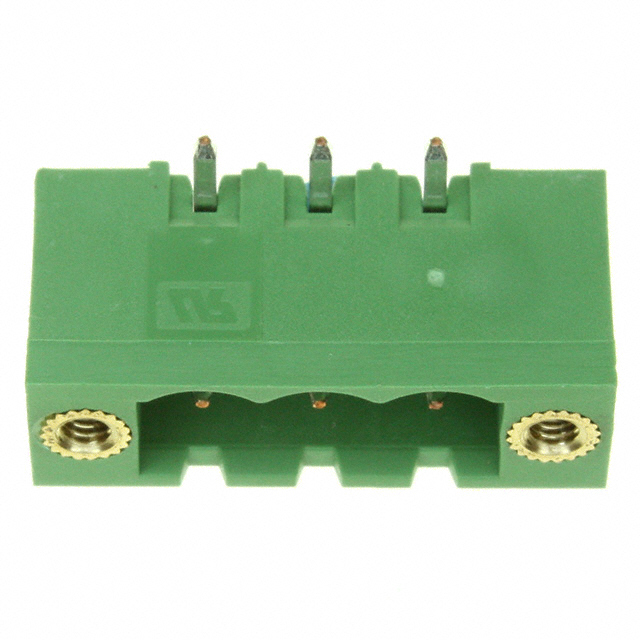

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 796864-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 796864-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 796864-3 |
---|---|
Manufacturer | Agastat Relays / TE Connectivity |
Description | TERM BLOCK HDR 3POS 90DEG 5MM |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
---|---|---|---|---|---|
$0.809 | $0.611 | $0.566 | $0.509 | $0.497 | |
250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
$0.435 | $0.397 | $0.36 | $0.317 |
- Product parameter
- Data sheet
Product parameter
Part Number | 796864-3 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | TERM BLOCK HDR 3POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 73369 pcs | Data sheet | 796864Terminal Blocks, Eurostyle |
Category | Connectors, Interconnects | Wire Strip Length | - |
Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
Torque - Screw | - | Termination Style | Solder |
Series | Buchanan | Screw Size | - |
Positions Per Level | 3 | Plug Wire Entry | - |
Pitch | 0.197" (5.00mm) | Packaging | Bulk |
Other Names | 7968643 A98297 |
Operating Temperature | -40°C ~ 110°C |
Number of Positions | 3 | Number of Levels | 1 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 21 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.329" (8.36mm) |
Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
Header Orientation | 90°, Right Angle | Features | Mating Flange |
Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole | Current - UL | 15A |
Current - IEC | - | Contact Tail Length | 0.138" (3.50mm) |
Contact Mating Finish | Tin | Contact Material | Phosphor Bronze |
Color | Green |
