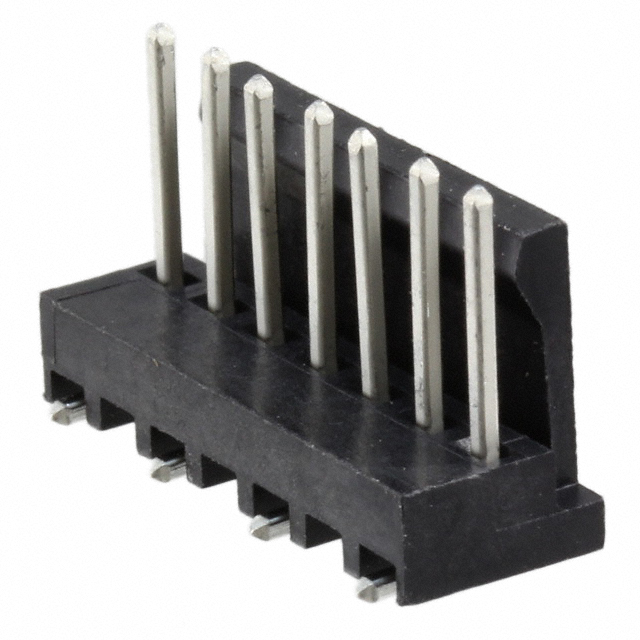

647166-7
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 647166-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 647166-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 647166-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 07P MTA100 HDR ASSY SM FL SN |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.476 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 647166-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 07P MTA100 HDR ASSY SM FL SN | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 65210 pcs | Data sheet | 647166 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | MTA-100 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A109111 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 7 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 31 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant | Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Insulation Height | 0.347" (8.81mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Surface Mount 7 position 0.100" (2.54mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.290" (7.37mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Applications | General Purpose |
