5-2301996-1

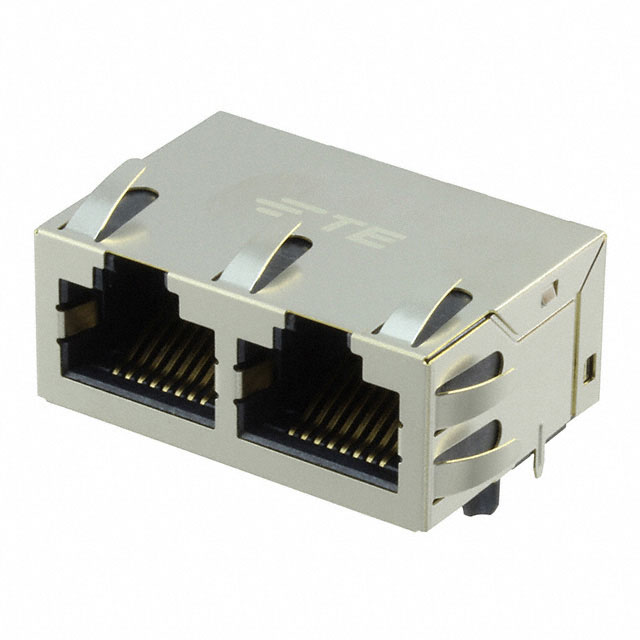

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-2301996-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-2301996-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-2301996-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN MAGJACK 2PORT 100 BASE-T |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $3.984 | $3.812 | $3.465 | $3.292 | ||
| 120 pcs | 270 pcs | 510 pcs | 1020 pcs | ||
| $3.206 | $2.859 | $2.686 | $2.374 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-2301996-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN MAGJACK 2PORT 100 BASE-T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16504 pcs | Data sheet | 5-2301996-1 DrawingRJ45 Jacks Spec SheetRJ45 Jacks Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | - |
| Packaging | Tray | Other Names | A126269 |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 2 |
| Number of Cores per Jack | 4 | Mounting Type | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Does Not Contain LED |
| Housing Material | Liquid Crystal Polymer (LCP) | Height Above Board | 0.531" (13.49mm) |
| Features | Board Lock | Detailed Description | 2 Port RJ45 Magjack Connector Panel Mount, Through Hole 10/100 Base-T, AutoMDIX |
| Contact Material | Copper Alloy | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100 Base-T, AutoMDIX |
