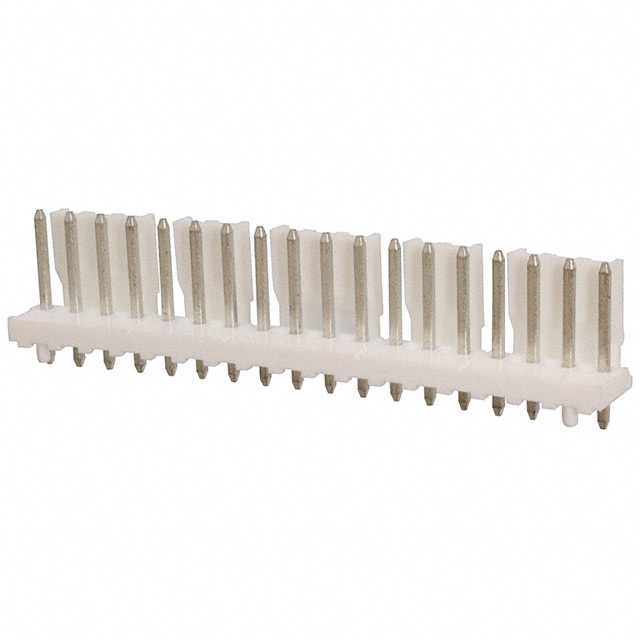

4-644615-8
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4-644615-8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4-644615-8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4-644615-8 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 18POS VERT TIN .156 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | ||||
|---|---|---|---|---|---|
| $1.022 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4-644615-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 18POS VERT TIN .156 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38538 pcs | Data sheet | 644615 |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | MTA-156 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.700" (17.78mm) |
| Other Names | 4-644615-8-ND A113731 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 18 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.545" (13.84mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide, Keying Slot |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 18 position 0.156" (3.96mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | 0.450" (11.43mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial |
