3-284487-3

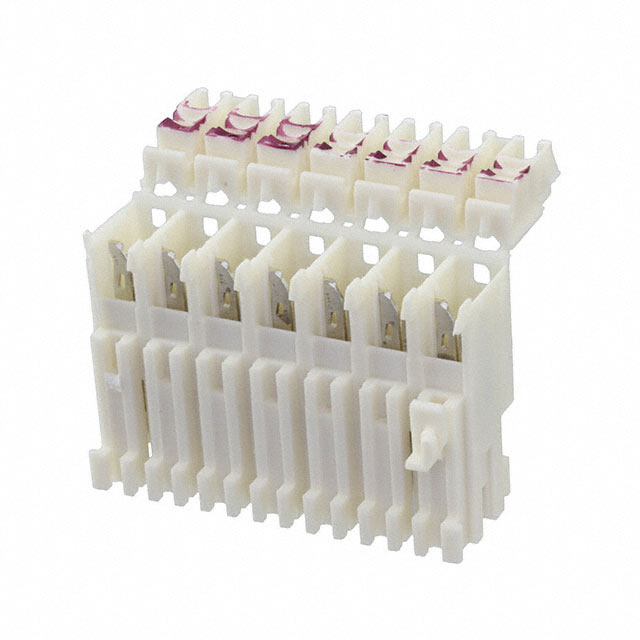

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-284487-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-284487-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-284487-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 7 POS MONO SHAPE MKII PCB ASS'Y |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-284487-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 7 POS MONO SHAPE MKII PCB ASS'Y | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5590 pcs | Data sheet | 284482 Drawing |
| Category | Connectors, Interconnects | Wire Type | Discrete |
| Wire Gauge | - | Series | Mark II |
| Row Spacing | - | Pitch | 0.197" (5.00mm) |
| Packaging | Tray | Other Names | A120688 |
| Number of Rows | 1 | Number of Positions | 7 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Mates to PCB |
| Fastening Type | Friction Lock | Detailed Description | 7 Position Rectangular Receptacle Connector IDC Tin |
| Contact Type | Female Blade Socket | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector Type | Receptacle |
| Color | Natural | Cable Termination | IDC |
