Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > 292207-5

292207-5

292207-5

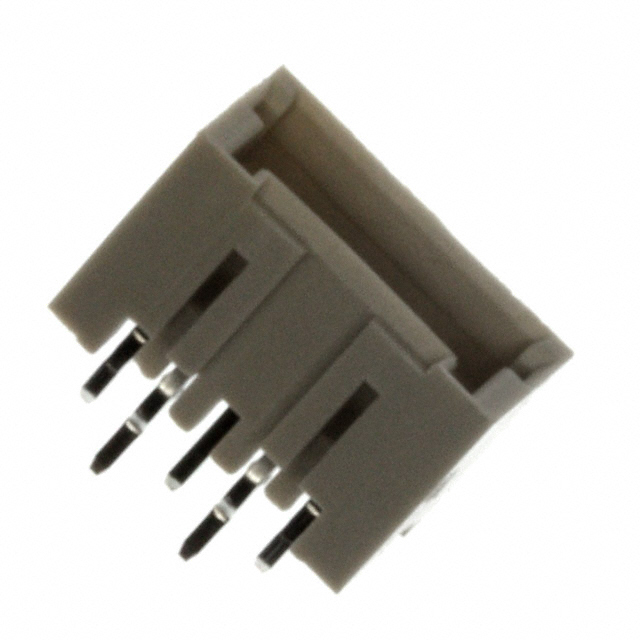

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 292207-5 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 292207-5
Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 5POS VERT 1.5MM TIN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 291363 pcs
Reference Price
(In US Dollars)
1 pcs10 pcs100 pcs500 pcs
$0.17$0.159$0.122$0.106
1000 pcs5000 pcs10000 pcs
$0.087$0.077$0.071

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.17

Product parameter

Part Number 292207-5 Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 5POS VERT 1.5MM TIN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 291363 pcs Data sheet 292207
Category Connectors, Interconnects Voltage Rating 50VAC
Termination Kinked Pin, Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series Mini CT
Row Spacing - Mating - Pitch - Mating 0.059" (1.50mm)
Packaging Bulk Overall Contact Length 0.307" (7.80mm)
Other Names A98684 Operating Temperature -30°C ~ 105°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 5 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 12 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA), Nylon, Glass Filled
Insulation Height 0.272" (6.91mm) Insulation Color Gray
Ingress Protection - Features Board Guide
Fastening Type Detent Lock Detailed Description Connector Header Through Hole 5 position 0.059" (1.50mm)
Current Rating Varies by Wire Gauge Contact Type Male Pin
Contact Shape Square Contact Material Brass
Contact Length - Post 0.118" (3.00mm) Contact Length - Mating 0.094" (2.40mm)
Contact Finish Thickness - Post - Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications General Purpose
