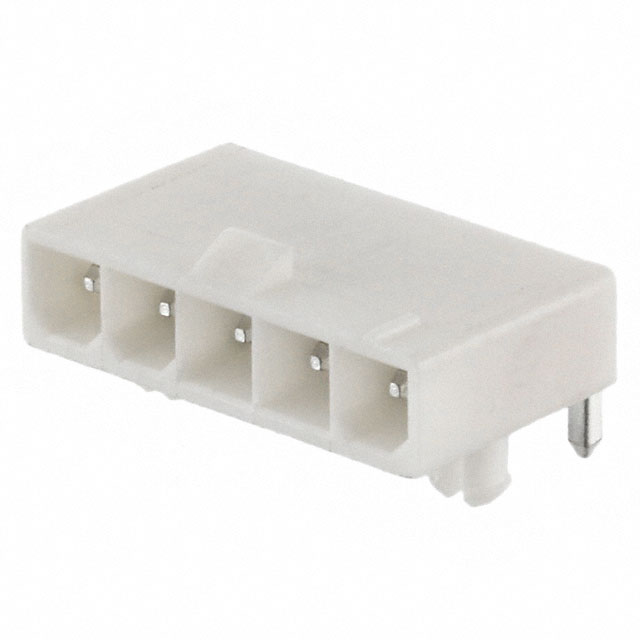

2029151-5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2029151-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2029151-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2029151-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 5POS R/A W/PEGS T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.313 | $0.275 | $0.238 | $0.194 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.173 | $0.151 | $0.144 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2029151-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 5POS R/A W/PEGS T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 139319 pcs | Data sheet | 2029151 |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | VAL-U-LOK |
| Row Spacing - Mating | - | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 2029151-5-ND A112987 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | - | Insulation Color | - |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 5 position 0.165" (4.20mm) |
| Current Rating | 9A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Lighting |
