2-36149-3

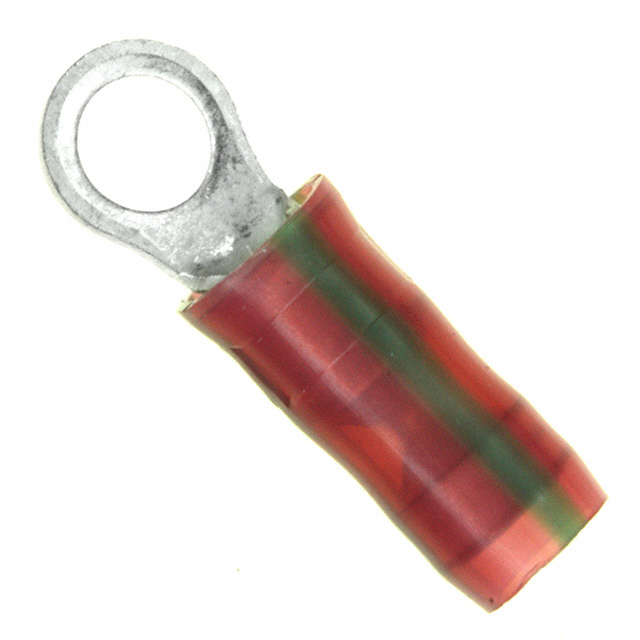

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-36149-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-36149-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2-36149-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 22AWG #6 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.253 | $0.236 | $0.212 | $0.189 | $0.181 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.165 | $0.157 | $0.13 | $0.118 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2-36149-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 22AWG #6 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 198085 pcs | Data sheet | 36149 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 22 AWG |
| Width - Outer Edges | 0.218" (5.54mm) | Thickness | 0.031" (0.79mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 6 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 2-36149-3-ND A99254 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 10 Weeks |
| Length - Overall | 0.734" (18.64mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.038" ~ 0.110" (0.97mm ~ 2.79mm) | Insulation | Insulated |
| Features | Insulation Restriction | Detailed Description | Ring Terminal Connector 6 Stud Circular 22 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red, Green Stripe |
