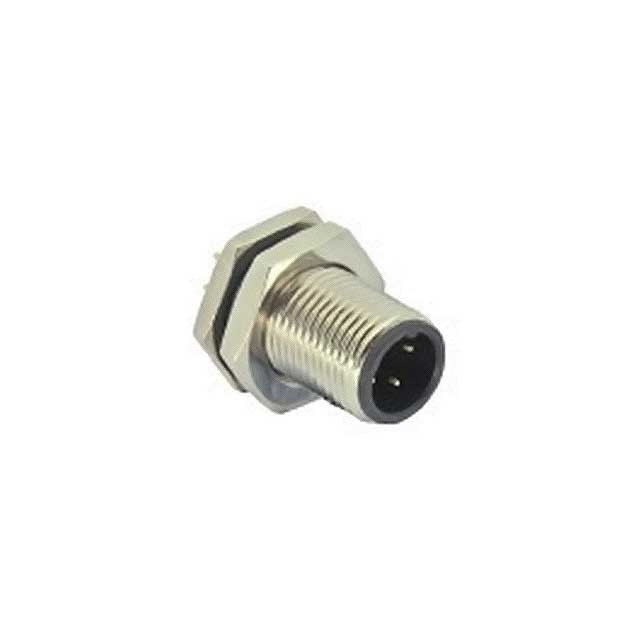

1838420-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1838420-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1838420-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1838420-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PLUG MALE 3POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $5.012 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1838420-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PLUG MALE 3POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7221 pcs | Data sheet | 1838420 |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC/DC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | M12-3 |
| Shell Material | Brass | Shell Finish | Nickel |
| Series | M12 | Packaging | Bulk |
| Orientation | Keyed | Operating Temperature | -25°C ~ 90°C |
| Number of Positions | 3 | Mounting Type | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | - |
| Fastening Type | Threaded | Detailed Description | 3 Position Circular Connector Plug, Male Pins Solder Cup Gold |
| Current Rating | 5A | Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Contact Finish - Mating | Gold | Connector Type | Plug, Male Pins |
| Color | Silver | Cable Opening | - |
| Backshell Material, Plating | - |
