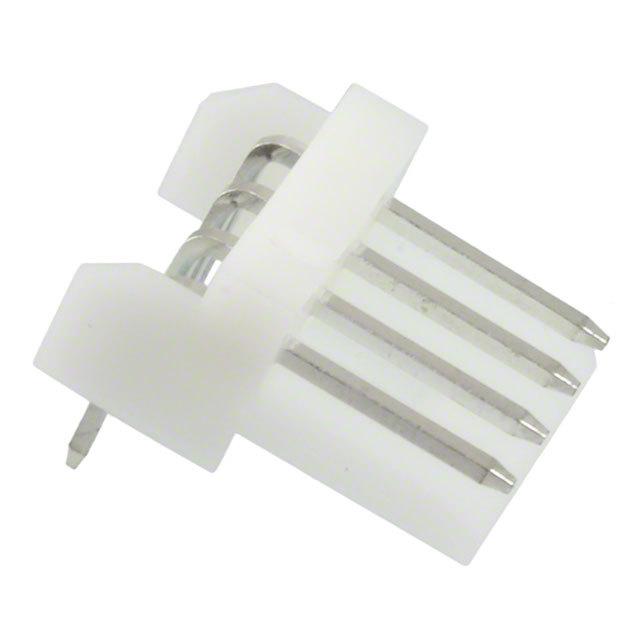

171826-4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 171826-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 171826-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 171826-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HDR 4POS T/H R/A 2.5MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.225 | $0.21 | $0.161 | $0.14 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.115 | $0.101 | $0.094 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 171826-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HDR 4POS T/H R/A 2.5MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 252460 pcs | Data sheet | 171826 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC, 350VDC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | EI |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 171826-4-ND 1718264 A112643 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.264" (6.70mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.098" (2.50mm) |
| Current Rating | 2A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.142" (3.60mm) | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness - Post | 31.5µin (0.80µm) | Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
