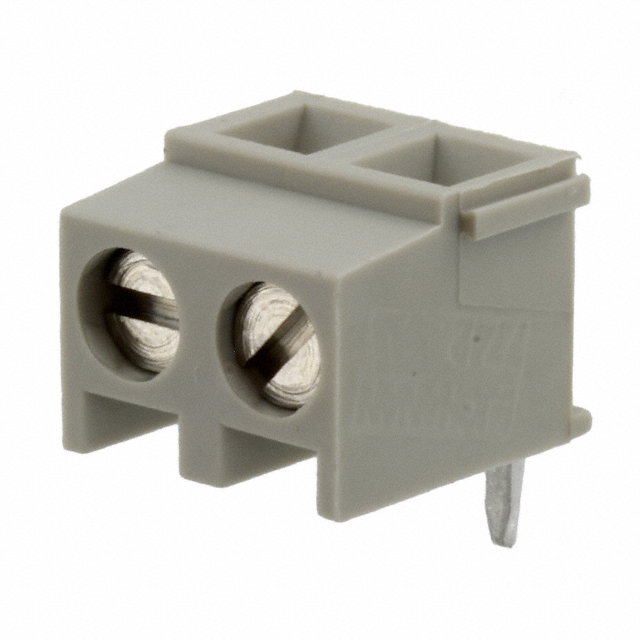

1546225-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1546225-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1546225-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1546225-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK RCPT WIRE 2POS R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.401 | $0.25 | $0.214 | $0.192 | $0.188 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.16 | $0.152 | $0.136 | $0.106 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1546225-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK RCPT WIRE 2POS R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 208269 pcs | Data sheet | 1546225 Drawing |
| Category | Connectors, Interconnects | Wire Termination | Screw - Rising Cage Clamp |
| Wire Gauge | 16-30 AWG | Voltage | 300V |
| Torque - Screw | 0.68 Nm (6 Lb-In) | Series | Buchanan |
| Screw Thread | M3 | Screw Material - Plating | Brass - Nickel Plated |
| Positions Per Level | 2 | Pitch | 0.197" (5.00mm) |
| Packaging | Tray | Other Names | 1546225-2-ND A112361 |
| Operating Temperature | -40°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Vertical with Board | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Features | Interlocking (Side) | Detailed Description | 2 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole |
| Current | 13.5A | Contact Material - Plating | Brass - Tin Plated |
| Color | Gray | Clamp Material - Plating | Brass - Nickel Plated |
